28608.4

Active

Conta-Clip, Inc.

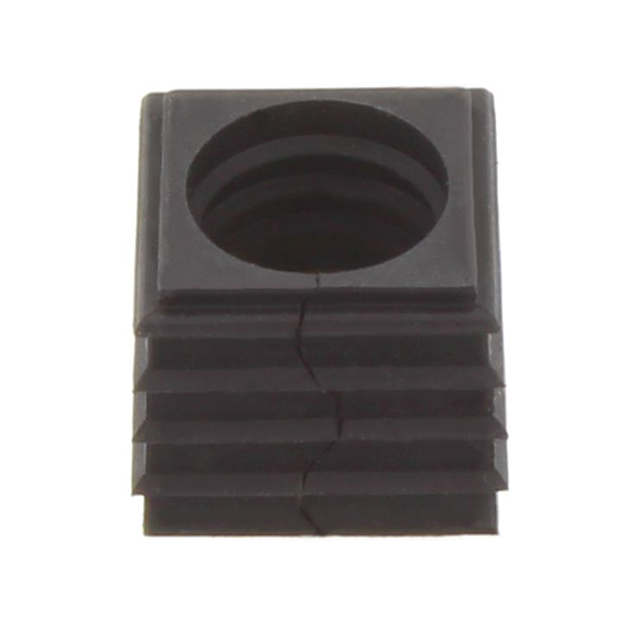

KDS SMALL SEALING SLEEVE 15MM

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

KDS SMALL SEALING SLEEVE 15MM

Technical Specifications

Parameters and characteristics for this part

Specification	28608.4

Bushing, Grommet Type	Frame Grommet, Split
Color	Black
Diameter - Inside [Max] [diameter]	0.591 in
Diameter - Inside [Max] [diameter]	15 mm
Diameter - Inside [Min] [diameter]	0.551 in
Diameter - Inside [Min] [diameter]	14 mm
Features	IP66 - Dust Tight, Water Resistant
For Use With/Related Products	Wires, Cable
Material	Thermoplastic Elastomer (TPE)
Material Flammability Rating	UL94 HB
Panel Cutout Dimensions [x]	20.3 mm
Panel Cutout Dimensions [x]	0.799 in

Part	Material	Features	Color	Material Flammability Rating	Bushing, Grommet Type	For Use With/Related Products	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Min] [diameter]
Conta-Clip, Inc. 28608.4	Thermoplastic Elastomer (TPE)	IP66 - Dust Tight Water Resistant	Black	UL94 HB	Frame Grommet Split	Cable Wires	20.3 mm	0.799 in	0.591 in	15 mm	0.551 in	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Square - 0.799" (20.30mm) Frame Grommet, Split 0.551" ~ 0.591" (14.00mm ~ 15.00mm) Black
