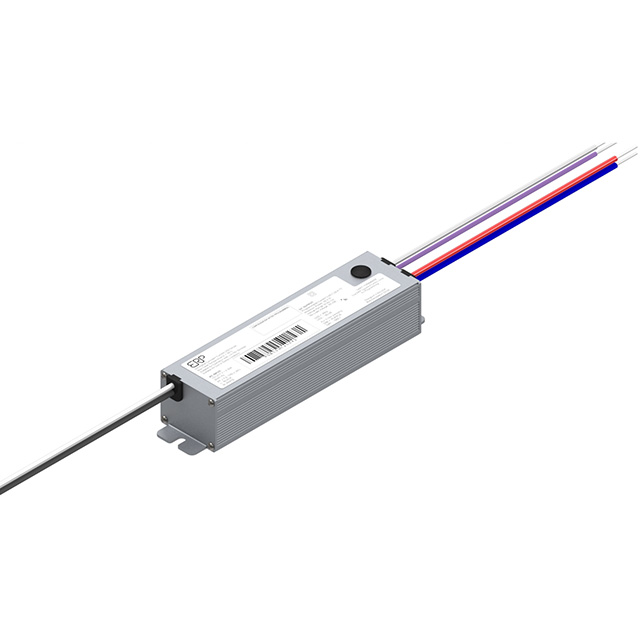

PSB30W-1050-27
ActiveERP Power, LLC
LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSB30W-1050-27
ActiveERP Power, LLC
LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSB30W-1050-27 |
|---|---|
| Approval Agency | CE, CB, cULus |
| Current - Output (Max) [Max] | 1.05 A |
| Dimming | ELV, Analog, TRIAC |
| Efficiency | 90 % |
| Features | OTP, SCP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 28 W |
| Ratings | IP20 |
| Size / Dimension [x] | 3.93 in |
| Size / Dimension [x] | 99.8 mm |
| Size / Dimension [y] | 1.02 " |
| Size / Dimension [y] | 26 mm |
| Size / Dimension [z] | 23.7 mm |
| Size / Dimension [z] | 0.93 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 27 V |
| Voltage - Output [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 29.26 | |
Description
General part information
PSB30W Series
1.05A 18 ~ 27V Constant Current LED Driver AC DC Converter Topology 1 Output
