1034A 0104000

Active

Belden Inc.

CABLE 3COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1034A 0104000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Jacket (Insulation) Diameter [diameter]	6.86 mm
Jacket (Insulation) Diameter [diameter]	0.27 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Black
Length [x]	1219.2 m
Length [x]	4000 ft
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Voltage	300 V
Wire Gauge	16 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Length [x]	Length [x]	Jacket (Insulation) Material	Voltage	Number of Conductors	Wire Gauge	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 1034A 0104000	-30 ░C	105 ░C	6.86 mm	0.27 in	Multi-Conductor	1219.2 m	4000 ft	Poly-Vinyl Chloride (PVC)	300 V	3	16 AWG	Poly-Vinyl Chloride (PVC)	7	24	Copper Bare	Black	0.94 mm	0.037 in
Belden Inc. 1034A 0105000	-30 ░C	105 ░C	6.86 mm	0.27 in	Multi-Conductor			Poly-Vinyl Chloride (PVC)	300 V	3	16 AWG	Poly-Vinyl Chloride (PVC)	7	24	Copper Bare	Black	0.94 mm	0.037 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4000	$ 1.27

General part information

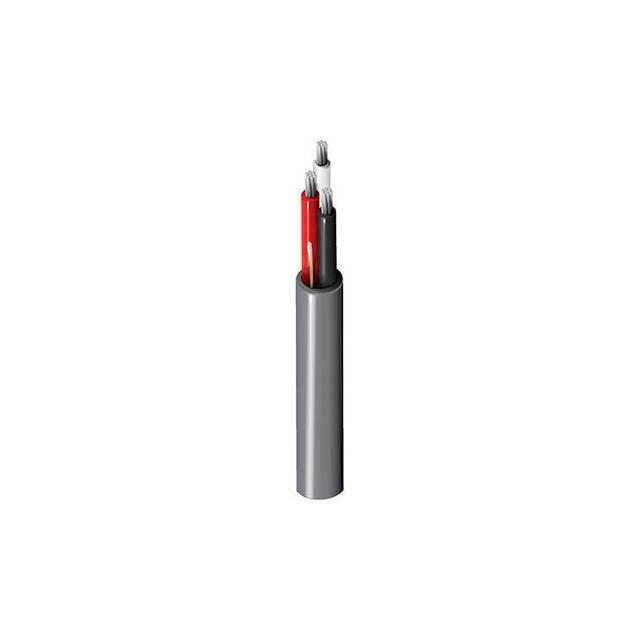

3 (1 Triad Twisted) Conductor Multi-Conductor Cable Black 16 AWG 4000' (1219.2m)
