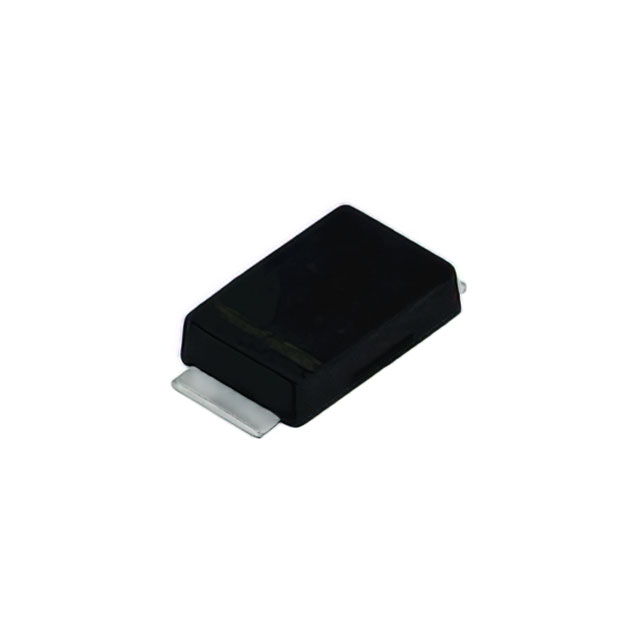

VS-2EYH01-M3/I

Active

Vishay General Semiconductor - Diodes Division

DIODE STANDARD 100V 2A SLIMSMAW

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE STANDARD 100V 2A SLIMSMAW

Technical Specifications

Parameters and characteristics for this part

Specification	VS-2EYH01-M3/I

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	2 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SMA Flat Leads, DO-221AC
Reverse Recovery Time (trr)	28 ns
Speed	200 mA, 500 ns
Supplier Device Package	SlimSMAW (DO-221AD)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	930 mV

Part	Grade	Speed	Package / Case	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Qualification	Supplier Device Package	Technology	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Capacitance @ Vr, F
Vishay General Semiconductor - Diodes Division VS-2EYH01HM3/I	Automotive	200 mA 500 ns	DO-221AC SMA Flat Leads	2 A	2 µA	AEC-Q101	SlimSMAW (DO-221AD)	Standard	Surface Mount	175 ░C	-55 C	930 mV	100 V	28 ns
Vishay General Semiconductor - Diodes Division VS-2EYH01-M3/I		200 mA 500 ns	DO-221AC SMA Flat Leads	2 A	2 µA		SlimSMAW (DO-221AD)	Standard	Surface Mount	175 ░C	-55 C	930 mV	100 V	28 ns
Vishay General Semiconductor - Diodes Division VS-2EYH01-M3/H		200 mA 500 ns	DO-221AC SMA Flat Leads	2 A	2 µA		SlimSMAW (DO-221AD)	Standard	Surface Mount	175 ░C	-55 C	930 mV	100 V	28 ns	12 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 2A Surface Mount SlimSMAW (DO-221AD)
