DVK91220 - SOIC8

Active

Melexis Technologies NV

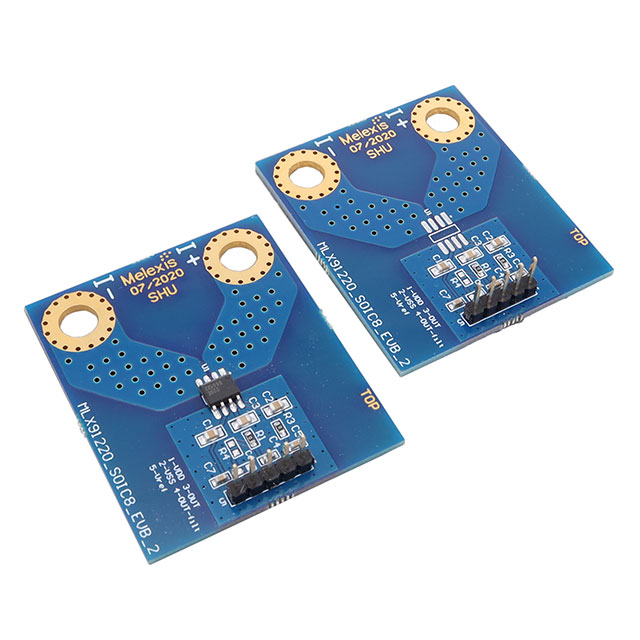

EVAL BOARD FOR MLX91220

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DVK91220 - SOIC8

Active

Melexis Technologies NV

EVAL BOARD FOR MLX91220

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DVK91220 - SOIC8

Embedded	False
Interface	Analog
Sensing Range	50 A
Sensitivity	40 mV/mT
Sensor Type	Current Sensor
Supplied Contents	Board(s)
Utilized IC / Part	MLX91220

MLX91220 Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Sensing	Mounting Type	Current - Supply (Max) [Max]	Sensitivity	Frequency [Max]	Frequency [Min]	Output	Linearity	Response Time	Number of Channels	Package / Case [x]	Package / Case	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Polarization	Supplier Device Package	For Measuring	Supplied Contents	Sensing Range	Utilized IC / Part	Interface
Melexis Technologies NV MLX91220KDF-ABF-050-SP	4.5 V	5.5 V	50 A	Surface Mount	21 mA	40 mV/mT	300 kHz	DC	Fixed Voltage	±0.6%	2 µs	1	0.295 in	16-SOIC	7.5 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	16-SOIC	AC/DC
Melexis Technologies NV MLX91220KDC-ABR-025-RE	4.5 V	5.5 V	25 A	Surface Mount	21 mA	80 mV/A	300 kHz	DC	Ratiometric Voltage	±0.6%	2 µs	1	0.154 in	8-SOIC	3.9 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	8-SOIC	AC/DC
Melexis Technologies NV MLX91220KDF-ABF-025-SP	4.5 V	5.5 V	25 A	Surface Mount	21 mA	80 mV/A	300 kHz	DC	Fixed Voltage	±0.6%	2 µs	1	0.295 in	16-SOIC	7.5 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	16-SOIC	AC/DC
Melexis Technologies NV DVK91220 - SOIC8						40 mV/mT												Current Sensor				Board(s)	50 A	MLX91220	Analog
Melexis Technologies NV MLX91220KDC-ABF-050-SP	4.5 V	5.5 V	50 A	Surface Mount	21 mA	40 mV/mT	300 kHz	DC	Fixed Voltage	±0.6%	2 µs	1	0.154 in	8-SOIC	3.9 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	8-SOIC	AC/DC
Melexis Technologies NV MLX91220KDC-ABR-025-SP	4.5 V	5.5 V	25 A	Surface Mount	21 mA	80 mV/A	300 kHz	DC	Ratiometric Voltage	±0.6%	2 µs	1	0.154 in	8-SOIC	3.9 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	8-SOIC	AC/DC
Melexis Technologies NV MLX91220KDF-ABR-025-SP	4.5 V	5.5 V	25 A	Surface Mount	21 mA	80 mV/A	300 kHz	DC	Ratiometric Voltage	±0.6%	2 µs	1	0.295 in	16-SOIC	7.5 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	16-SOIC	AC/DC
Melexis Technologies NV MLX91220KDF-ABF-025-RE	4.5 V	5.5 V	25 A	Surface Mount	21 mA	80 mV/A	300 kHz	DC	Fixed Voltage	±0.6%	2 µs	1	0.295 in	16-SOIC	7.5 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	16-SOIC	AC/DC
Melexis Technologies NV MLX91220KDF-ABF-050-RE	4.5 V	5.5 V	50 A	Surface Mount	21 mA	40 mV/mT	300 kHz	DC	Fixed Voltage	±0.6%	2 µs	1	0.295 in	16-SOIC	7.5 mm	125 °C	-40 °C	Hall Effect Open Loop	Bidirectional	16-SOIC	AC/DC
