GT-96180-1818-T3-PP
ActiveGlobTek, Inc.

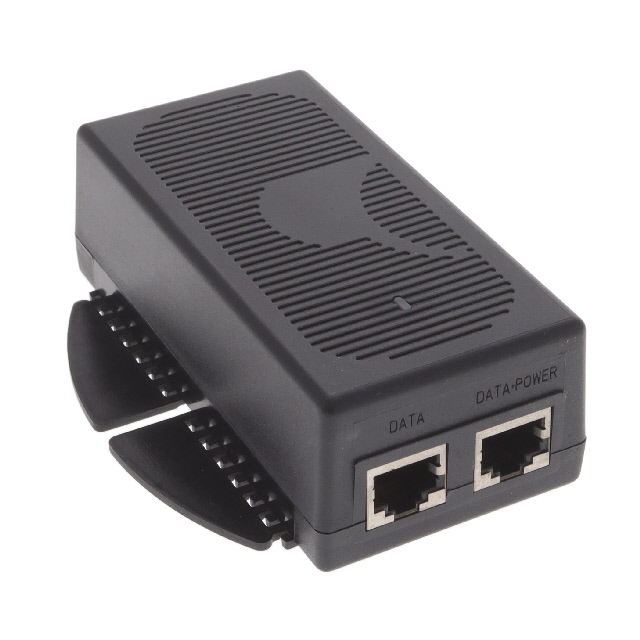

POE INJECTOR 18V 18W DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GT-96180-1818-T3-PP
ActiveGlobTek, Inc.
POE INJECTOR 18V 18W DESKTOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GT-96180-1818-T3-PP |
|---|---|
| Approval Agency | CB, PSE, EAC, ETL, VCCI, CE, UKRSepro, S-Mark |
| Compliance | IEEE802.3af |
| Current - Output | 1 A |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | Level VI |
| Features | SCP, OCP, OVP |
| Input Connector | IEC 320-C14 |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 18 W |
| Size / Dimension [x] | 107 mm |
| Size / Dimension [x] | 4.21 " |
| Size / Dimension [y] | 55 mm |
| Size / Dimension [y] | 2.17 in |
| Size / Dimension [z] | 1.41 in |
| Size / Dimension [z] | 35.7 mm |
| Standard Number | 60335-1, 60950-1, 62368-1 |
| Type | Midspan Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 18 V |
GT-96180 Series
| Part | Data Rate | Compliance | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output | Input Connector | Power (Watts) - Per Port | Approval Agency | Output Connector | Standard Number | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input [Min] | Voltage - Input [Max] | Number of Ports | Features | Mounting Type | Type | Voltage - Output | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GlobTek, Inc. | 10 Mbps 100 Mbps 1000 Mbps | IEEE802.3af | -10 °C | 40 °C | 600 mA | IEC 320-C14 | 18 W | CB CE EAC ETL PSE S-Mark UKRSepro VCCI | RJ45 (Data Power) | 60335-1 60950-1 62368-1 | Level VI | 107 mm | 55 mm | 4.21 " | 1.41 in | 2.17 in | 35.7 mm | 90 VAC | 264 VAC | 1 | OCP OVP SCP | Desktop | Midspan Injector | 30 VDC | ||
GlobTek, Inc. | 10 Mbps 100 Mbps 1000 Mbps | -10 °C | 40 °C | 370 mA | IEC 320-C8 | 18 W | CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI | RJ45 (Data Power) | 60335-1 60950-1 62368-1 | Level VI | 107 mm | 55 mm | 4.21 " | 1.41 in | 2.17 in | 35.7 mm | 90 VAC | 264 VAC | 1 | OCP OVP SCP | Desktop | Passive Injector | 48 V | |||
GlobTek, Inc. | 10 Mbps 100 Mbps 1000 Mbps | IEEE802.3af | -10 °C | 40 °C | 1 A | IEC 320-C14 | 18 W | CB CE EAC ETL PSE S-Mark UKRSepro VCCI | RJ45 (Data Power) | 60335-1 60950-1 62368-1 | Level VI | 107 mm | 55 mm | 4.21 " | 1.41 in | 2.17 in | 35.7 mm | 90 VAC | 264 VAC | 1 | OCP OVP SCP | Desktop | Midspan Injector | 18 V | ||
GlobTek, Inc. | 10 Mbps 100 Mbps 1000 Mbps | IEEE802.3af | -10 °C | 40 °C | 320 mA | IEC 320-C6 (Power) RJ45 (Data) | 18 W | CB CE EAC ETL PSE S-Mark UKRSepro VCCI | RJ45 (Data Power) | 60335-1 60950-1 62368-1 | Level VI | 104 mm | 4.09 in | 1.58 " | 2.13 in | 90 VAC | 264 VAC | 1 | OCP OVP SCP | Wall Mount | Midspan Injector | 56 V | 54 mm | 40.2 mm | ||
GlobTek, Inc. | 10 Mbps 100 Mbps 1000 Mbps | -10 °C | 40 °C | 600 mA | IEC 320-C8 | 18 W | CB CCC CE EAC ETL PSE RCM S-Mark UKRSepro VCCI | RJ45 (Data Power) | 60335-1 60950-1 62368-1 | Level VI | 107 mm | 55 mm | 4.21 " | 1.41 in | 2.17 in | 35.7 mm | 90 VAC | 264 VAC | 1 | OCP OVP SCP | Desktop | Passive Injector | 30 VDC | |||
GlobTek, Inc. | 10 Mbps 100 Mbps 1000 Mbps | IEEE802.3af | -10 °C | 40 °C | 375 mA | IEC 320-C14 | 18 W | CB CE EAC ETL PSE S-Mark UKRSepro VCCI | RJ45 (Data Power) | 60335-1 60950-1 62368-1 | Level VI | 107 mm | 55 mm | 4.21 " | 1.41 in | 2.17 in | 35.7 mm | 90 VAC | 264 VAC | 1 | OCP OVP SCP | Desktop | Midspan Injector | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.31 | |
| 10 | $ 15.21 | |||
| 25 | $ 14.45 | |||
| 50 | $ 13.90 | |||
| 100 | $ 13.37 | |||
| 250 | $ 12.70 | |||
| 500 | $ 12.22 | |||
Description
General part information
GT-96180 Series
18V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
