Q-6801A0003108I

Active

Amphenol Custom Cable

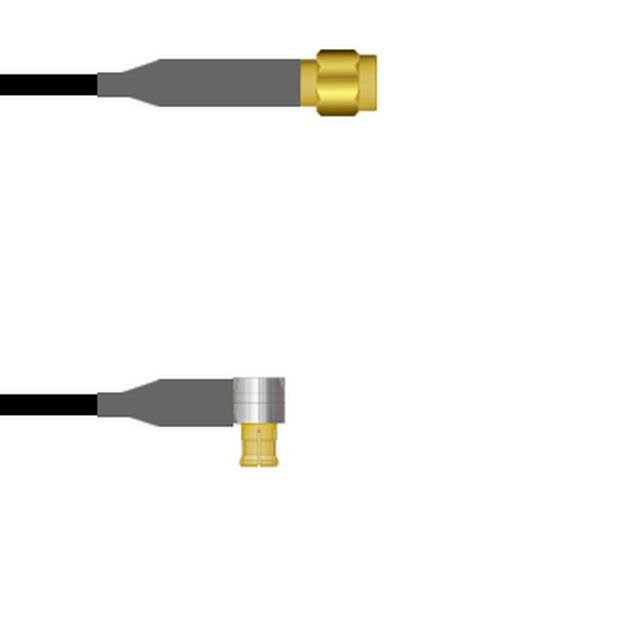

CBL ASSY RPSMA-MCX PLUG-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-6801A0003108I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-MCX PLUG-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6801A0003108I

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	RP-SMA to MCX

Q-6801A0 Series

Part	2nd Connector Mounting Type	1st Contact Gender	Cable Type	1st Connector Mounting Type	Length	Length	Style	Overall Impedance	Frequency - Max [Max]	Connector Impedance	1st Connector	2nd Connector	2nd Contact Gender	Cable Impedance	Features	Color	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-6801A0005006I	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	152.4 mm	6 in	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper
Amphenol Custom Cable Q-6801A0005012I	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	304.8 mm	12 "	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper
Amphenol Custom Cable Q-6801A0005003M	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	3 m	118.1 in	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper	9.8 '
Amphenol Custom Cable Q-6801A0005048I	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	1200 mm	48 in	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper	4 ft
Amphenol Custom Cable Q-6801A0003108I	Free Hanging (In-Line)	Female	RG-174	Free Hanging (In-Line)	2.7 m	108 in	RP-SMA to MCX	50 Ohms	1 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Black	9 ft
Amphenol Custom Cable Q-6801A0005060I	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	1.5 m	5 '	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper	5 ft
Amphenol Custom Cable Q-6801A00051.5M	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	1.5 m	59.1 in	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper	4.9 ft
Amphenol Custom Cable Q-6801A0005024I	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	609.6 mm	24 "	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper
Amphenol Custom Cable Q-6801A0005.25M	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)			RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper		9.843 "	250 mm
Amphenol Custom Cable Q-6801A0005084I	Free Hanging (In-Line)	Female	RG-316	Free Hanging (In-Line)	2.1 m	84 in	RP-SMA to MCX	50 Ohms	3 GHz	50 Ohms	RP-SMA Plug	MCX Plug Right Angle	Male	50 Ohms	Shielded	Copper	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 64.57
		25	$ 63.30
		50	$ 62.04
		100	$ 60.78
		250	$ 59.51

Description

General part information

Q-6801A0 Series

Cable Assembly Coaxial RP-SMA to MCX RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
