PTGL14AR3R3M3B71B0

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 56V 490MA RADIAL

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PTC RESET FUSE 56V 490MA RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Resistance - 25°C (Typ)	Mounting Type	Voltage - Max [Max]	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Lead Spacing	Lead Spacing	Current - Trip (It)	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Approval Agency
Murata Power Solutions Inc. PTGL14AR100M6B72B0	21 mm	0.827 "	Ceramic	0.217 in	0.591 in	15 mm	5.5 mm	-10 °C	60 °C	10 Ohms	Through Hole	125 V	280 mA	1.2 A	7.5 mm	0.295 in	475 mA	Disc Radial
Murata Power Solutions Inc. PTGL14AR3R3M3B71B0			Ceramic		0.571 inches	14.5 mm		-10 °C	60 °C	3.3 Ohms	Through Hole	56 V	490 mA	2.5 A	7.5 mm	0.295 in	830 mA	Disc Radial	4 mm	0.157 "	0.807 "	20.5 mm
Murata Power Solutions Inc. PTGL14AR0R5M1C01B0			Ceramic							500 mOhms	Through Hole							Disc Radial
Murata Power Solutions Inc. PTGL14AR180M9C01B0	21.7 mm	0.854 "	Ceramic			0.618 in 15.7 mm		-10 °C	60 °C	18 Ohms	Through Hole	265 V	230 mA	1.8 A	10 mm	0.394 in	380 mA	Disc Radial	0.256 in 6.5 mm				UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

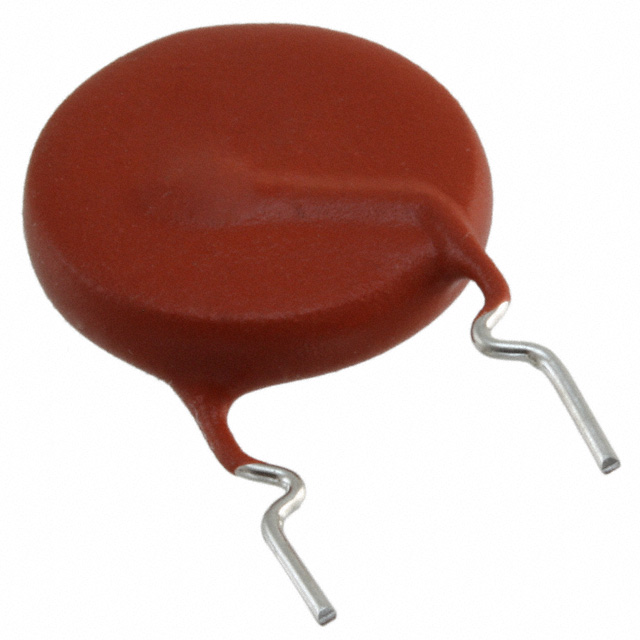

Ceramic PTC Resettable Fuse 56V 490 mA Ih Through Hole Radial, Disc
