X-NUCLEO-IDB05A2
ActiveBLUETOOTH LOW ENERGY EXPANSION BOARD BASED ON THE BLUENRG-M0 MODULE FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-IDB05A2
ActiveBLUETOOTH LOW ENERGY EXPANSION BOARD BASED ON THE BLUENRG-M0 MODULE FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X-NUCLEO-IDB05A2 |
|---|---|
| Contents | Board(s) |
| Function | Bluetooth Low Energy (BLE) |
| Interconnect System | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo |
| Type | RF |
| Utilized IC / Part | BlueNRG-M0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
X-NUCLEO-IDB05A2 Series

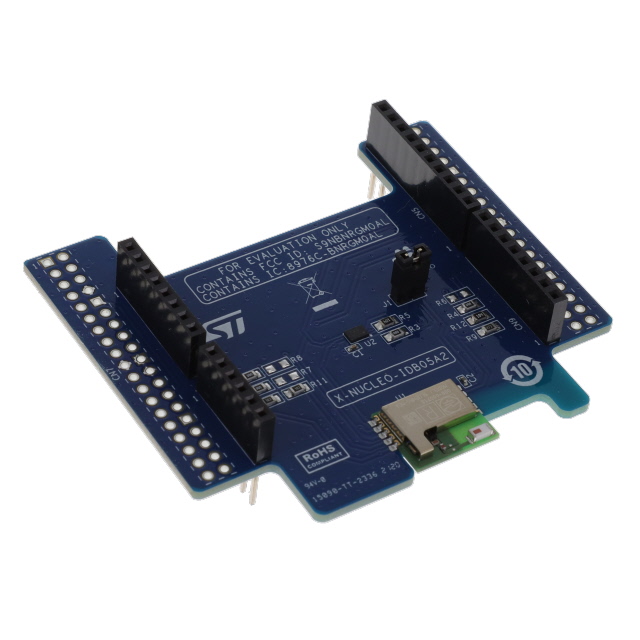

The X-NUCLEO-IDB05A2 Bluetooth low energy expansion board is based on the BlueNRG-M0 BLE network processor module.
The BlueNRG-M0 is Bluetooth v4.2 compliant, FCC and IC certified (FCC ID: S9NBNRGM0AL; IC: 8976C-BNRGM0AL). It supports simultaneous master/slave roles and can behave as a Bluetooth low energy sensor and hub device at the same time.
The BlueNRG-M0 provides a complete RF platform in a tiny form factor, with integrated radio, antenna, high frequency and LPO oscillators.
