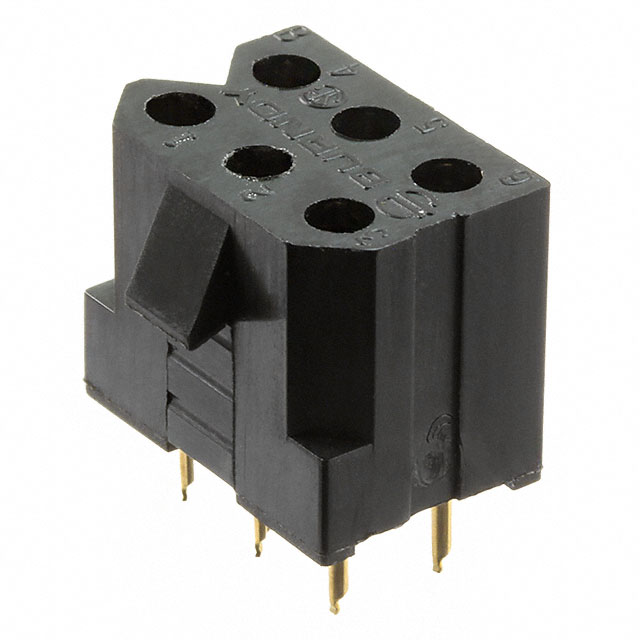

SMS6R-3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 6POS BRD MNT

Deep-Dive with AI

Search across all available documentation for this part.

SMS6R-3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 6POS BRD MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMS6R-3S6

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Mounting Flange
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C

SMS6R Series

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Color	Row Spacing	Row Spacing	Contact Type	Connector Type	Insulation Material	Number of Positions	Note	Pitch [x]	Pitch [x]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Contact Shape	Insulation Color	Contact Finish - Post	Style	Termination	Shrouding	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Features
Souriau-Sunbank by Eaton SMS6R-3	2	-40 °C	105 ░C	Crimp	White	5.08 mm	0.2 in	Female Socket	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	0.2 in	5.08 mm	Latch Lock
Souriau-Sunbank by Eaton SMS6R4S6	2	-55 °C	125 °C					Male Pin	Header	Polyester Glass Filled	6				Locking Ramp	0.28 in	7.11 mm	Copper Alloy	16 Áin	0.41 Ám	Gold	IP40	5 A	Circular	Black	Tin	Board to Cable/Wire	Solder	Unshrouded	0.972 in	24.7 mm	Through Hole	0.173 in	4.4 mm	5.08 mm	0.2 "	UL94 V-2	5.08 mm	0.2 in	All
Souriau-Sunbank by Eaton SMS6RE3D70	2	-55 °C	105 ░C					Female Socket	Receptacle		6				Locking Ramp			Copper Alloy			Gold	IP40	5 A	Circular	Black	Gold	Board to Board Cable	Solder				Through Hole	0.173 in	4.4 mm	5.08 mm	0.2 "	UL94 V-0	5.08 mm	0.2 in	All	Flash	Flash	Mounting Flange
Souriau-Sunbank by Eaton SMS6R-3S6		-40 °C	105 ░C	Crimp	Black			Female Socket	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included			Locking Ramp																	Panel Mount Snap-In											Mounting Flange
Souriau-Sunbank by Eaton SMS6R1	2	-40 °C	105 ░C	Crimp		5.08 mm	0.2 in	Male or Female	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	0.2 in	5.08 mm	Locking Ramp																	Panel Mount Snap-In
Souriau-Sunbank by Eaton SMS6RE3S6	2	-55 °C	105 ░C					Female Socket	Receptacle		6				Locking Ramp			Copper Alloy	29.5 Áin	0.75 Ám	Gold	IP40	5 A	Circular	Black	Gold	Board to Board Cable	Solder				Through Hole	0.173 in	4.4 mm	5.08 mm	0.2 "	UL94 V-0	5.08 mm	0.2 in	All	Flash		Mounting Flange
Souriau-Sunbank by Eaton SMS6RDH1	2	-40 °C	105 ░C	Crimp		5.08 mm	0.2 in	Male or Female	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	0.2 in	5.08 mm	Locking Ramp																	Free Hanging (In-Line)											Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SMS6R Series

6 Rectangular Connectors - Housings Receptacle Black
