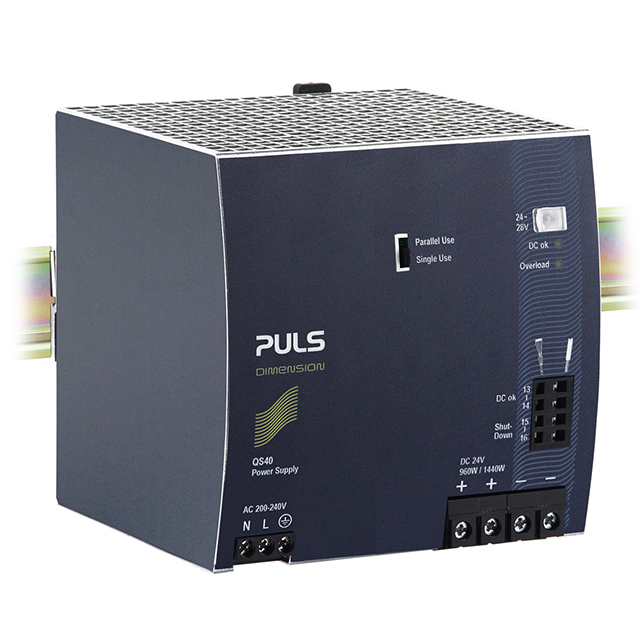

QS40.244

Active

PULS, LP

AC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 960W, HYBRID, ROHS COMPLIANT, PACKAGE-15

Search across all available documentation for this part.

Active

PULS, LP

AC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 960W, HYBRID, ROHS COMPLIANT, PACKAGE-15

Technical Specifications

Parameters and characteristics for this part

Specification	QS40.244

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	170 VAC
Applications	ITE (Commercial)
Approval Agency	UL, ABS, SEMI, EAC, IEC, DNV GL
Current - Output (Max) [Max]	40 A
Efficiency	94.6 %
Features	PFC, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	960 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	4.88 in
Size / Dimension [y]	124 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	60950-1, F47, 61010-2-201, 508
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Features	Input Type	Voltage - Output 1	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Standard Number	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Efficiency	Power (Watts)
PULS, LP QS40.244	1	-10 °C	70 °C	500 V	40 A	Adjustable Output Load Sharing PFC	AC	24 V	ITE (Commercial)	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	508 60950-1 61010-2-201 F47	170 VAC	264 VAC	ABS DNV GL EAC IEC SEMI UL	94.6 %	960 W
PULS, LP QS40.481	1	-10 °C	70 °C	500 V	20 A	Adjustable Output Load Sharing PFC	AC	48 V	ITE (Commercial)	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	508 60950-1 61010-2-201 Class I Div 2	90 VAC	264 VAC	ABS ATEX CSA DNV GL EAC IEC IECEx UL	95 %	960 W
PULS, LP QS40.241	1	-10 °C	70 °C	500 V	40 A	Adjustable Output Load Sharing PFC	AC	24 V	Hazardous Locations ITE (Commercial)	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	508 60950-1 61010-2-201 Class I Div 2	90 VAC	264 VAC	ABS ATEX CSA DNV GL EAC IEC IECEx UL	94.6 %	960 W
PULS, LP QS40.361	1	-10 °C	70 °C	500 V	26.7 A	Adjustable Output Load Sharing PFC	AC	36 V	ITE (Commercial)	4.88 "	4.88 in	124 mm	127 mm	5 in	124 mm	508 60950-1 61010-2-201 Class I Div 2	90 VAC	264 VAC	ABS ATEX CSA DNV GL EAC IEC IECEx UL	94.6 %	960 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 904.50

General part information

AC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 960W, HYBRID, ROHS COMPLIANT, PACKAGE-15

Technical documentation and resources
