BPT-1/2

Active

Bertech

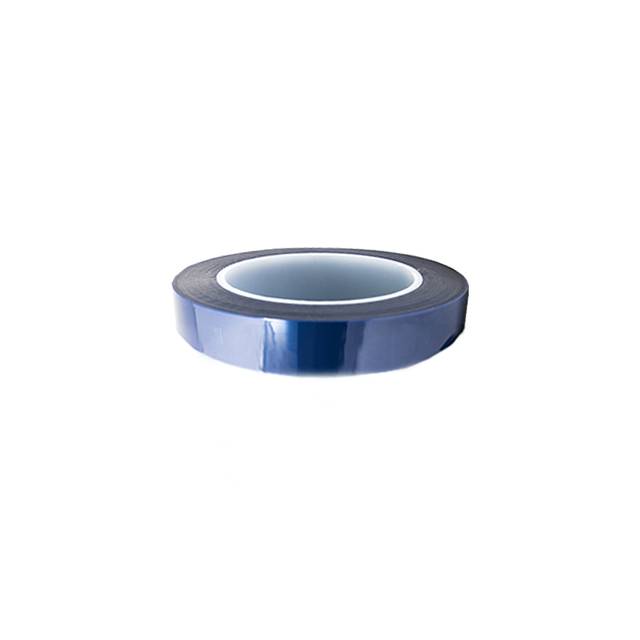

TAPE MASKING BLUE 1/2"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPT-1/2

Active

Bertech

TAPE MASKING BLUE 1/2"X72YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BPT-1/2

Adhesive	Silicone
Backing, Carrier	Polyester Film
Color	Blue
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Masking
Temperature Range [Max]	200 °C
Temperature Range [Min]	-100 °F, -73 °C
Thickness	2.5 mils
Thickness	0.064 mm
Thickness	0.0025 "
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Masking
Width	0.5 in
Width	12.7 mm
Width	0.5 in

BPT-1 Series

Part	Adhesive	Temperature Range [Max]	Temperature Range [Min]	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width	Width	Width	Shelf Life Start	Length	Length	Length	Usage	Backing, Carrier	Tape Type	Width	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Temperature Range [Min]	Thickness - Adhesive [x]	Width
Bertech BPT-1/8	Silicone	200 °C	-100 °F -73 °C	18 Months	1 mils	0.025 mm	0.001 "	Blue	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	0.125 "	0.13 in	3.18 mm	Date of Manufacture	66 m	216 ft	72 yd	Masking	Polyester Film	Masking
Bertech BPT-1 5/8	Silicone				1 mils	0.025 mm	0.001 "	Blue	3 mils	0.076 mm	0.003 in	2 mils		0.051 mm		1.63 in 41.28 mm			66 m	216 ft	72 yd	Masking	Polyester Film	Masking	1 5/8	-99 °F	204 °C	399 °F	-73 °C	0.002 "
Bertech BPT-1/2	Silicone	200 °C	-100 °F -73 °C	18 Months	1 mils	0.025 mm	0.001 "	Blue	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	0.5 in	0.5 in	12.7 mm	Date of Manufacture	66 m	216 ft	72 yd	Masking	Polyester Film	Masking
Bertech BPT-1 1/2	Silicone				1 mils	0.025 mm	0.001 "	Blue	3 mils	0.076 mm	0.003 in	2 mils		0.051 mm		1.5 "	38.1 mm		66 m	216 ft	72 yd	Masking	Polyester Film	Masking		-99 °F	204 °C	399 °F	-73 °C	0.002 "	1 1/2
Bertech BPT-1 3/8	Silicone				1 mils	0.025 mm	0.001 "	Blue	3 mils	0.076 mm	0.003 in	2 mils		0.051 mm		1.38 "	34.93 mm		66 m	216 ft	72 yd	Masking	Polyester Film	Masking		-99 °F	204 °C	399 °F	-73 °C	0.002 "
Bertech BPT-1 1/8	Silicone				1 mils	0.025 mm	0.001 "	Blue	3 mils	0.076 mm	0.003 in	2 mils		0.051 mm		1.13 in	28.58 mm		66 m	216 ft	72 yd	Masking	Polyester Film	Masking		-99 °F	204 °C	399 °F	-73 °C	0.002 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.60
		3	$ 8.84
		5	$ 8.53
		7	$ 8.35
		10	$ 8.13
		25	$ 7.64
		50	$ 7.24
		100	$ 6.93

Description

General part information

BPT-1 Series

Masking Tape Silicone Adhesive Blue 0.50" (12.70mm) 1/2" X 216' (66.0m) 72 yds
