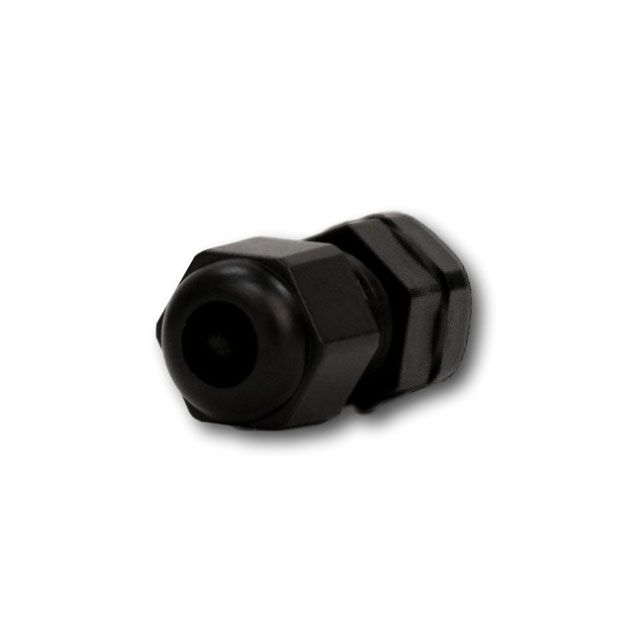

CGM12N26

Active

Switchcraft Inc.

CABLE GLAND 4-6.5MM M12 THERMOPL

Search across all available documentation for this part.

Active

Switchcraft Inc.

CABLE GLAND 4-6.5MM M12 THERMOPL

Technical Specifications

Parameters and characteristics for this part

Specification	CGM12N26

Color	Black
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Thermoplastic
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	0.35 "
Thread Length	8.89 mm
Thread Size	M12x1.25
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Thread Size	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Material
Switchcraft Inc. CGM12N26	100 °C	-40 °C	0.35 "	8.89 mm	M12x1.25	Cable Gland	0.157 in	4 mm	Black	IP68 - Dust Tight Waterproof	0.256 "	6.5 mm	O-Ring Seal	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Thermoplastic M12x1.25 Black
