BA56-11GWA

Active

Kingbright

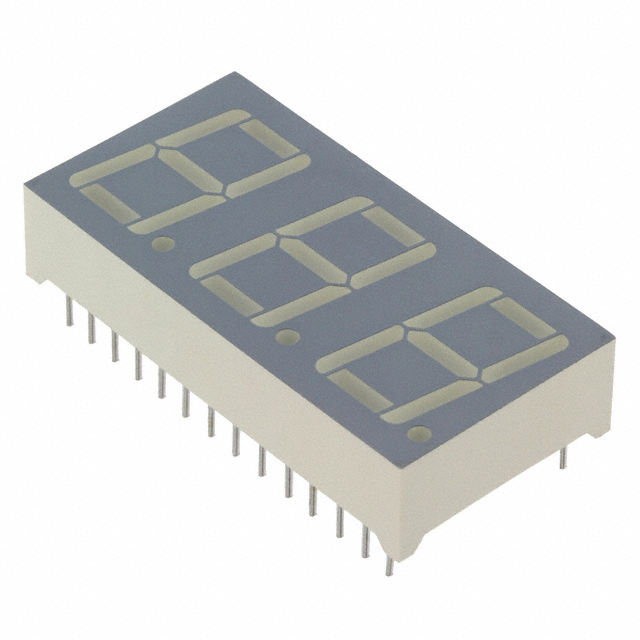

DISPLAY 7SEG 0.56" TRP GRN 28DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BA56-11GWA

Active

Kingbright

DISPLAY 7SEG 0.56" TRP GRN 28DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BA56-11GWA

Color	Green
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	8.6 mcd
Number of Characters	3
Package / Case	28-DIP
Package / Case	0.6 in
Package / Case	15.24 mm
Power Dissipation (Max) [Max]	62.5 mW
Size / Dimension [x]	1.48 in
Size / Dimension [x]	37.6 mm
Size / Dimension [y]	19 mm
Size / Dimension [y]	0.748 in
Size / Dimension [z]	0.319 in
Size / Dimension [z]	8.1 mm
Voltage - Forward (Vf) (Typ)	2.2 V
Wavelength - Peak	565 nm

BA56-11 Series

Part	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Peak	Power Dissipation (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Number of Characters	Current - Test	Common Pin	Package / Case	Package / Case	Package / Case	Display Type
Kingbright BA56-11SURKWA	1.95 V	Red	645 nm	75 mw	0.319 in	1.48 in	19 mm	8.1 mm	0.748 in	37.6 mm	0.56 in	14.22 mm	73 mcd	3	20 mA	Common Anode	28-DIP	0.6 in	15.24 mm	7-Segment
Kingbright BA56-11GWA	2.2 V	Green	565 nm	62.5 mW	0.319 in	1.48 in	19 mm	8.1 mm	0.748 in	37.6 mm	0.56 in	14.22 mm	8.6 mcd	3	20 mA	Common Anode	28-DIP	0.6 in	15.24 mm	7-Segment
Kingbright BA56-11YWA	2.1 V	Yellow	590 nm	75 mw	0.319 in	1.48 in	19 mm	8.1 mm	0.748 in	37.6 mm	0.56 in	14.22 mm	6.5 mcd	3	20 mA	Common Anode	28-DIP	0.6 in	15.24 mm	7-Segment
Kingbright BA56-11SRWA	1.85 V	Red	660 nm	75 mw	0.319 in	1.48 in	19 mm	8.1 mm	0.748 in	37.6 mm	0.56 in	14.22 mm	34 mcd	3	20 mA	Common Anode	28-DIP	0.6 in	15.24 mm	7-Segment

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.05
		13	$ 4.28
		104	$ 3.50
		507	$ 2.95
		1001	$ 2.71
		2002	$ 2.60

Description

General part information

BA56-11 Series

Display Modules - LED Character and Numeric Green 7-Segment 3 Character Common Anode 2.2V 20mA 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) 28-DIP (0.600", 15.24mm)

Documents

Technical documentation and resources
