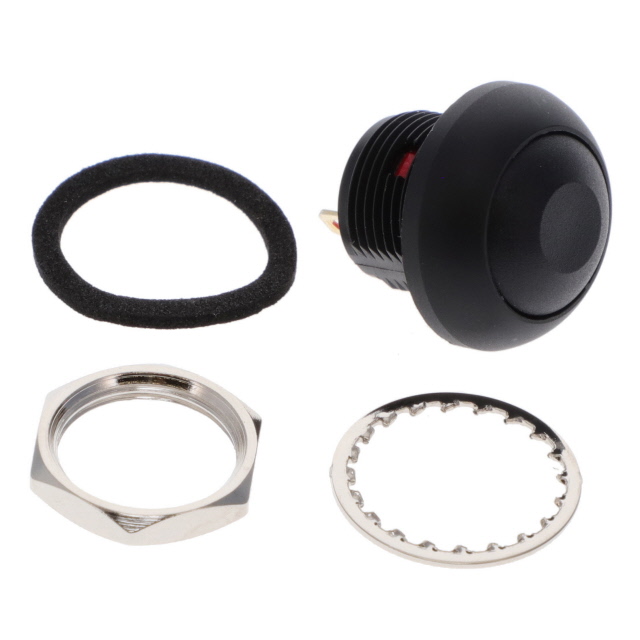

ESANMF2GBX

Active

CIT Relay and Switch

SWITCH PB SPST-NO 125MA 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST-NO 125MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ESANMF2GBX

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA
Electrical Life	500000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

Part	Voltage Rating - AC	Switch Function	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Type	Electrical Life	Ingress Protection	Actuator Type	Termination Style	Mounting Type	Mechanical Life	Circuit
CIT Relay and Switch ESANMF2GBX	125 V	Off-Mom	13.6 mm	Black	125 mA	50 VDC	85 °C	-40 °C	No Marking	Standard	500000 Cycles	IP67 - Dust Tight Waterproof	Button Flush Round	Solder Lug	Panel Mount Front	1000000 Cycles	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
