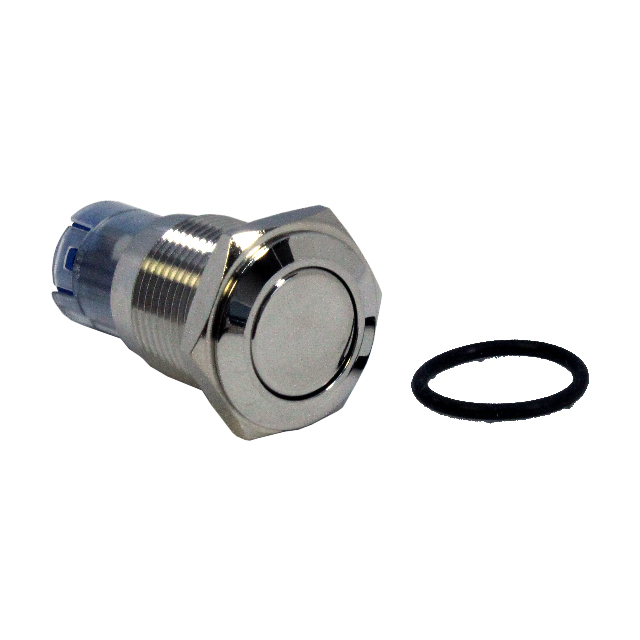

CH2LASS

Active

CIT Relay and Switch

SWITCH PB DPDT 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB DPDT 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CH2LASS

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Electrical Life	30000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Color - Actuator/Cap	Ingress Protection	Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Electrical Life	Actuator Type	Termination Style	Actuator Marking	Circuit
CIT Relay and Switch CH2LASS	On-On	70 °C	-25 °C	Panel Mount Front	125 V	Silver	IP67 - Dust Tight Waterproof	Anti-Vandal	24 V	16 mm	30000 Cycles	Button Flush Round	Solder Lug	No Marking	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 12.28

General part information

Pushbutton Switch DPDT Anti-Vandal Panel Mount, Front
