WP154A4SUREQBFZGC

Active

Kingbright

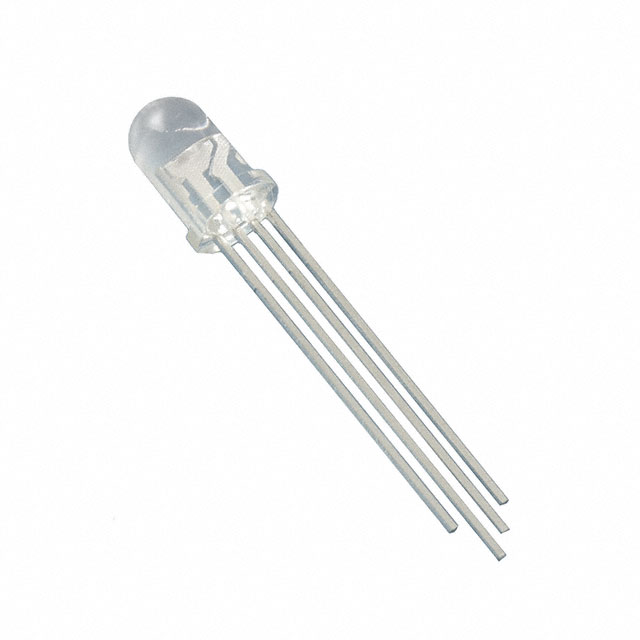

T-1 3/4 TRIPLE COLOR LED, HYR-GRE-BLU, 5MM, ROHS COMPLIANT PACKAGE-4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP154A4SUREQBFZGC

Active

Kingbright

T-1 3/4 TRIPLE COLOR LED, HYR-GRE-BLU, 5MM, ROHS COMPLIANT PACKAGE-4

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP154A4SUREQBFZGC

Color	Red, Green, Blue
Configuration	Common Cathode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	8.6 mm
Lens Color	Colorless
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating [custom]	400 mcd
Millicandela Rating [custom]	900 mcd
Millicandela Rating [custom]	1700 mcd
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Size / Dimension [diameter]	5 mm
Supplier Device Package	T-1 3/4
Viewing Angle	50 °
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Voltage - Forward (Vf) (Typ) [custom]	1.9 V
Wavelength - Dominant	465 nm, 630 nm, 525 nm
Wavelength - Peak [custom]	515 nm
Wavelength - Peak [custom]	645 nm
Wavelength - Peak [custom]	460 nm

WP154 Series

Part	Color	Lens Transparency	Height (Max) [Max] [z]	Mounting Type	Wavelength - Peak	Lens Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Lens Style	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Supplier Device Package	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Size / Dimension [diameter]	Viewing Angle	Lens Size	Lens Size	Configuration	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test	Voltage - Forward (Vf) (Typ) [custom]
Kingbright WP154A4SUREQBFZGW	Blue Green Red	Diffused	8.6 mm	Through Hole	460 nm 515 nm 640 nm	White	250 mcd	500 mcd	1300 mcd	Radial - 4 Leads	Round with Domed Top	3.3 V	3.3 V	1.9 V	T-1 3/4	20 mA	20 mA	20 mA	465 nm 525 nm 630 nm	5 mm	60 °	T-1 3/4	5 mm	Common Cathode
Kingbright WP154A4SUREQBFZGC	Blue Green Red	Clear	8.6 mm	Through Hole		Colorless	400 mcd	900 mcd	1700 mcd	Radial - 4 Leads	Round with Domed Top	3.3 V	3.3 V	1.9 V	T-1 3/4	20 mA	20 mA	20 mA	465 nm 525 nm 630 nm	5 mm	50 °	T-1 3/4	5 mm	Common Cathode	515 nm	645 nm	460 nm
Kingbright WP154A4SEJ3VBDZGW/CA	Blue Green Red	Diffused	9.6 mm	Through Hole		White	1100 mcd	400 mcd	1100 mcd	Radial	Round with Domed Top	3.3 V	3.3 V	2.2 V	T-1 3/4 (5mm)				470 nm 525 nm 625 nm	5 mm	60 °	T-1 3/4	5 mm	Common Anode	515 nm	640 nm	465 nm	20 mA
Kingbright WP154A4QBESEGZGC/CA	Blue Green Orange	Clear	8.6 mm	Through Hole	468 nm 515 nm 630 nm	Colorless				Radial - 4 Leads	Round with Domed Top	3.3 V	3.3 V		T-1 3/4				470 nm 525 nm 625 nm	5 mm	50 °	T-1 3/4	5 mm	Common Anode				20 mA 20 mA 20 mA	1.9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	140	$ 0.71
Digikey	Bulk	1	$ 1.88
		10	$ 1.19
		100	$ 0.88
		500	$ 0.81
		1000	$ 0.67
		2000	$ 0.63
		5000	$ 0.62
		10000	$ 0.61

Description

General part information

WP154 Series

Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.9V Red, 3.3V Green, 3.3V Blue Radial - 4 Leads
