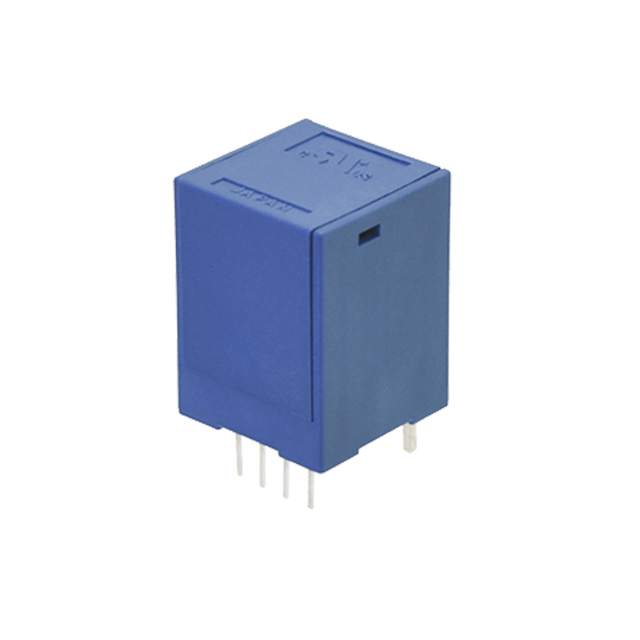

CS0312B
ActiveCUI Devices
CURRENT SENSOR,OPEN LOOP,3A,+12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS0312B
ActiveCUI Devices
CURRENT SENSOR,OPEN LOOP,3A,+12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS0312B |
|---|---|
| Accuracy | 4.2 % |
| Current - Sensing | 3 A |
| Current - Supply (Max) [Max] | 25 mA |
| For Measuring | AC |
| Frequency | DC ~ 40kHz |
| Linearity | 0.5 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -10 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensor Type | Open Loop |
| Voltage - Supply [Max] | 12.6 V |
| Voltage - Supply [Min] | 11.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.94 | |
| 10 | $ 15.04 | |||
Description
General part information
CS0312 Series
Current Sensor 3A 1 Channel Open Loop Bidirectional Module
