305-026-556-207
ActiveEDAC Inc.

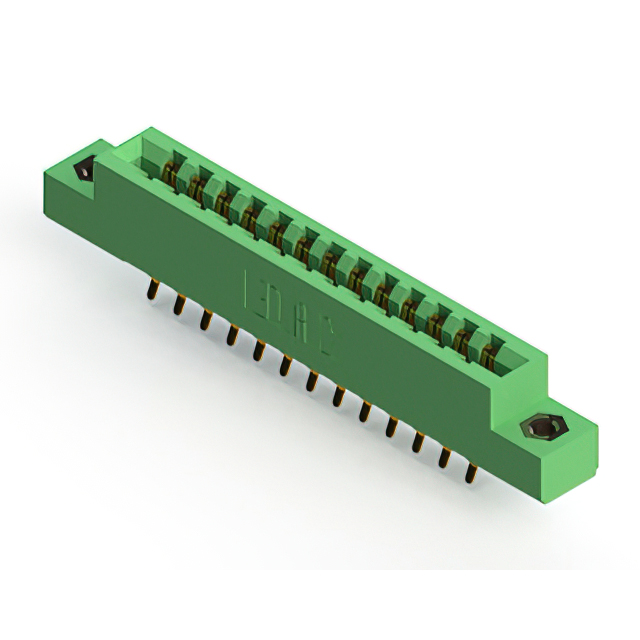

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 26 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
305-026-556-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 26 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 305-026-556-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
305-026 Series
| Part | Contact Finish | Contact Material | Card Type | Contact Type | Number of Positions | Material - Insulation | Termination | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions/Bay/Row [custom] | Gender | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Color | Contact Finish Thickness | Contact Finish Thickness | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder Eyelet(s) | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | Card Extender | Board Edge Straddle Mount | ||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder Eyelet(s) | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | Free Hanging (In-Line) | ||||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder Eyelet(s) | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | |||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder Eyelet(s) | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | |||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | Panel Mount Through Hole | |||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | Card Extender | Board Edge Straddle Mount | ||
EDAC Inc. | Gold | Copper Alloy | Non Specified - Dual Edge | Semi Bellows | 26 | Polyester Thermoplastic | Solder | 0.156 in | 3.96 mm | 2 | 13 | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | Green | 10 Áin | 0.25 Ám | Card Extender | Board Edge Straddle Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
305-026 Series
26 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
