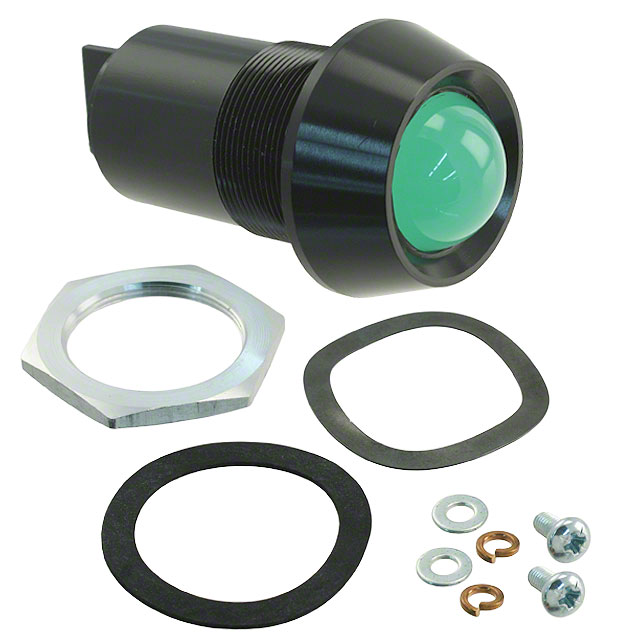

PM5-A20G110V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM 25.4MM GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM5-A20G110V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM 25.4MM GREEN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-A20G110V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 20 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 110 mcd |
| Panel Cutout Dimensions | 25.4 mm |
| Panel Cutout Dimensions | 1 in |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Type | LED |
| Viewing Angle | 160 ° |
| Voltage | 110 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM5-A20G110 Series
LED Panel Indicator Green Diffused 160° 110V 20mA
