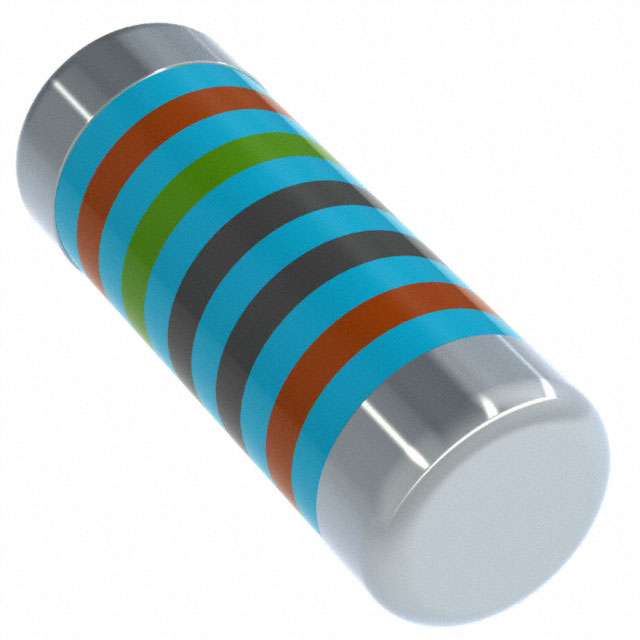

SMA-A0102FTDL150R

Active

TE Connectivity Passive Product

RES 150 OHM 1% 0.3W MELF 0102

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMA-A0102FTDL150R

Active

TE Connectivity Passive Product

RES 150 OHM 1% 0.3W MELF 0102

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMA-A0102FTDL150R

Composition	Metal Film
Features	Automotive AEC-Q200
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	MELF, 0102
Power (Watts)	300 mW
Ratings	AEC-Q200
Resistance	150 Ohms
Size / Dimension [diameter]	0.043 in
Size / Dimension [diameter]	1.1 mm
Size / Dimension [x]	2.2 mm
Size / Dimension [x]	0.087 in
Supplier Device Package	0102
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

SMA-A0102 Series

Part	Supplier Device Package	Temperature Coefficient	Tolerance	Features	Ratings	Package / Case	Number of Terminations	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Resistance	Composition	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Passive Product SMA-A0102BTNL6K8	0102	15 ppm/°C	0.1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	6.8 kOhms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102BTNL820R	0102	15 ppm/°C	0.1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	820 Ohms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102FTDL1K0	0102	50 ppm/°C	1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	1000 Ohms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102FTDL8K2	0102	50 ppm/°C	1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	8.2 kOhms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102BTNL2K7	0102	15 ppm/°C	0.1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	2.7 kOhms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102BTNL150R	0102	15 ppm/°C	0.1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	150 Ohms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102BTNL270R	0102	15 ppm/°C	0.1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	270 Ohms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102FTDL12K	0102	50 ppm/°C	1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	12 kOhms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102FTDL82K	0102	50 ppm/°C	1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	82 kOhms	Metal Film	300 mW	155 °C	-55 °C
TE Connectivity Passive Product SMA-A0102FTDL150R	0102	50 ppm/°C	1 %	Automotive AEC-Q200	AEC-Q200	0102 MELF	2	0.043 in	2.2 mm	0.087 in	1.1 mm	150 Ohms	Metal Film	300 mW	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.61
		10	$ 0.44
		25	$ 0.35
		50	$ 0.26
		100	$ 0.19
		250	$ 0.17
		500	$ 0.14
		1000	$ 0.11
	Digi-Reel®	1	$ 0.61
		10	$ 0.44
		25	$ 0.35
		50	$ 0.26
		100	$ 0.19
		250	$ 0.17
		500	$ 0.14
		1000	$ 0.11
	Tape & Reel (TR)	3000	$ 0.07

Description

General part information

SMA-A0102 Series

150 Ohms ±1% 0.3W Chip Resistor MELF, 0102 Automotive AEC-Q200 Metal Film
