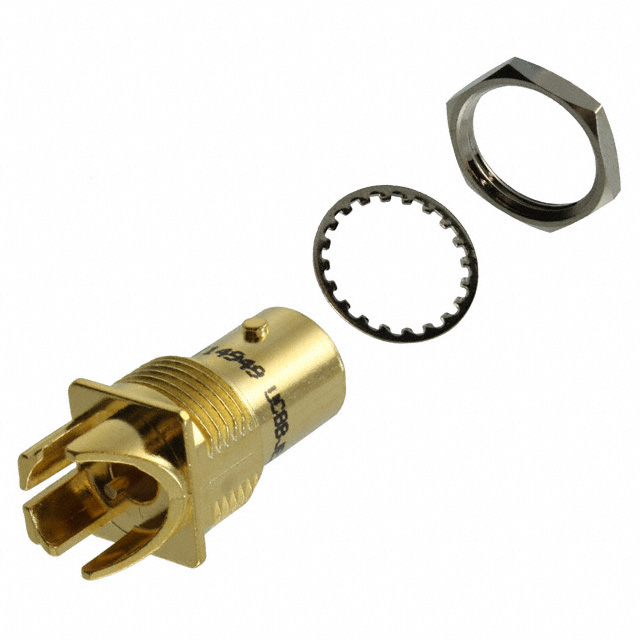

UCBBJE20-3
ActiveCinch Connectivity Solutions Trompeter
CONN BNC JACK STR 75OHM EDGE MNT
Deep-Dive with AI
Search across all available documentation for this part.
UCBBJE20-3
ActiveCinch Connectivity Solutions Trompeter
CONN BNC JACK STR 75OHM EDGE MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCBBJE20-3 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, End Launch, Board Edge |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.86 | |
| 10 | $ 5.30 | |||
| 25 | $ 5.01 | |||
| 50 | $ 4.88 | |||
| 100 | $ 4.64 | |||
| 300 | $ 4.30 | |||
Description
General part information
UCBBJE20 Series
BNC Connector Jack, Female Socket 75 Ohms Board Edge, End Launch; Panel Mount Solder
