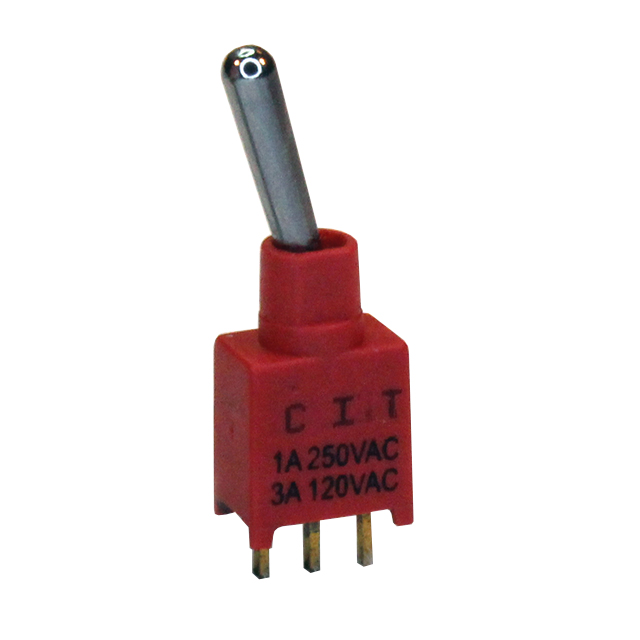

BST13T1ACR
ActiveCIT Relay and Switch
SWITCH TOGGLE SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BST13T1ACR
ActiveCIT Relay and Switch
SWITCH TOGGLE SPDT 3A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BST13T1ACR |
|---|---|
| Actuator Length [x] | 10.16 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A |
| Electrical Life | 30000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-Off-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.02 | |
| 10 | $ 3.59 | |||
| 25 | $ 3.40 | |||
| 50 | $ 3.28 | |||
| 200 | $ 3.11 | |||
| 400 | $ 2.97 | |||
| 600 | $ 2.73 | |||
| 1000 | $ 2.61 | |||
Description
General part information
BST13 Series
Toggle Switch SPDT Through Hole
