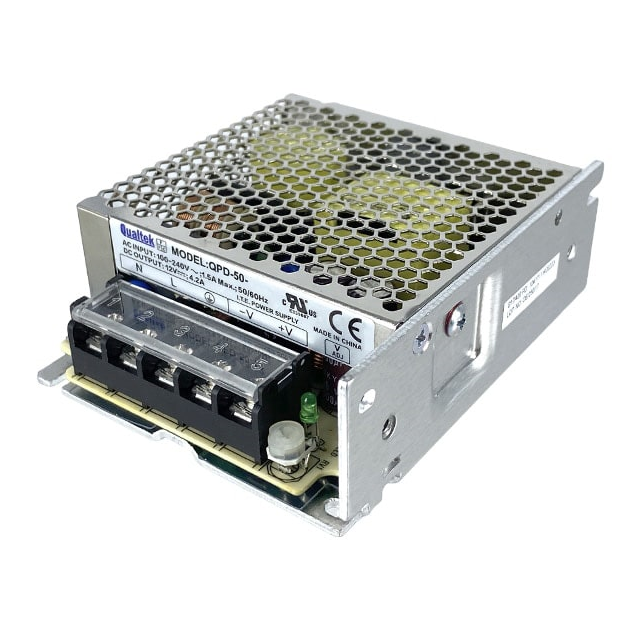

QPD-50-15

Active

Qualtek

AC/DC CONVERTER 15V 50W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 15V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	QPD-50-15

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	3.4 A
Efficiency	86 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	50 W
Size / Dimension [x]	3.9 "
Size / Dimension [x]	99 mm
Size / Dimension [y]	82 mm
Size / Dimension [y]	3.23 "
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Current - Output 1	Power (Watts)	Applications	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Type	Voltage - Isolation	Efficiency	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Mounting Type
Qualtek QPD-50-15	3.4 A	50 W	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	90 VAC	264 VAC	1	Enclosed	3000 V	86 %	CB CE cURus	-25 °C	70 °C	15 V	Chassis Mount
Qualtek QPD-50-48	1.12 A	50 W	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	90 VAC	264 VAC	1	Enclosed	3000 V	89 %	CB CE cURus	-25 °C	70 °C	48 V	Chassis Mount
Qualtek QPD-50-5	8 A	50 W	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	90 VAC	264 VAC	1	Enclosed	3000 V	80 %	CB CE cURus	-25 °C	70 °C	5 V	Chassis Mount
Qualtek QPD-50-12	4.2 A	50 W	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	1.38 in	35 mm	3.9 "	82 mm	3.23 "	99 mm	90 VAC	264 VAC	1	Enclosed	3000 V	85 %	CB CE cURus	-25 °C	70 °C	12 V	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 35.75

General part information

Enclosed AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
