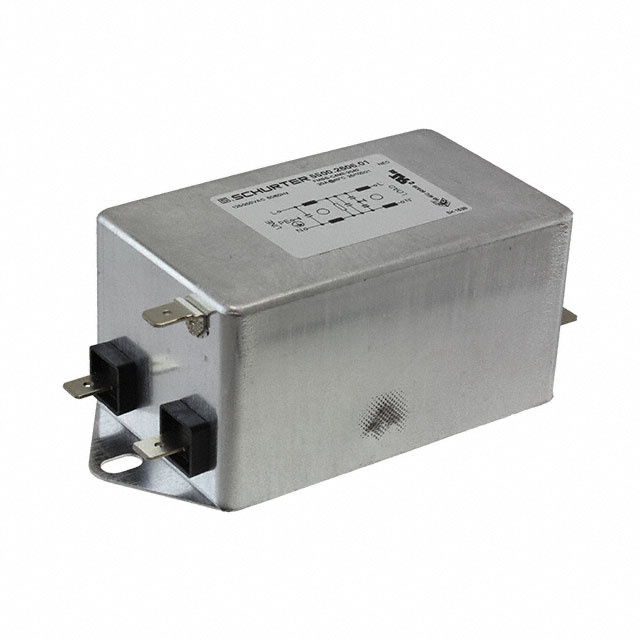

5500.2606.01

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 20A CHAS

Search across all available documentation for this part.

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 20A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	5500.2606.01

Applications	Power Drive Systems, Inverters
Approval Agency	cURus, VDE, ENEC
Configuration	Two Stage
Current	20 A
Filter Type	Single Phase
Inductance	600 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC	125 V, 250 V

Part	Mounting Type	Approval Agency	Voltage - Rated AC	Termination Style	Filter Type	Applications	Operating Temperature [custom]	Inductance	Current	Configuration
SCHURTER Inc. 5500.2606.01	Chassis Mount	cURus ENEC VDE	125 V 250 V	Quick Connect	Single Phase	Inverters Power Drive Systems	-25 °C 100 °C	600 µH	20 A	Two Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 20 A 125V, 250V Two Stage Quick Connect
