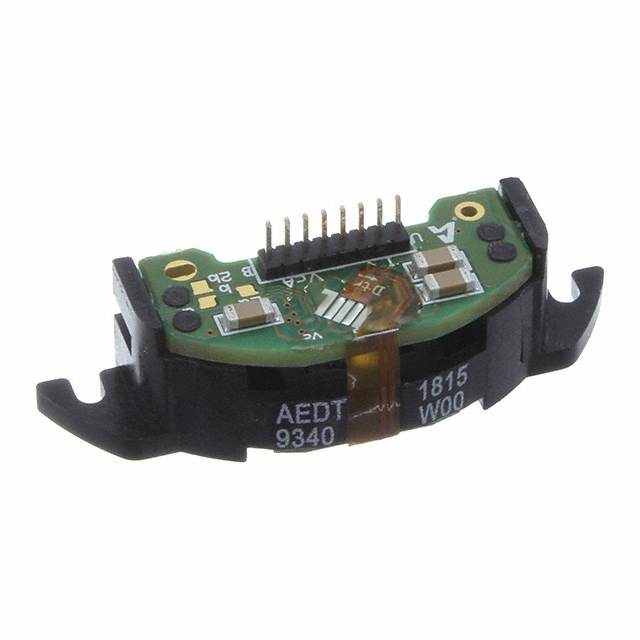

AEDT-9340-W00

Active

Broadcom Limited

ROTARY ENCODER OPTICAL 2500PPR

Search across all available documentation for this part.

Active

Broadcom Limited

ROTARY ENCODER OPTICAL 2500PPR

Technical Specifications

Parameters and characteristics for this part

Specification	AEDT-9340-W00

Actuator Type	Codewheel Not Included
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	2500
Termination Style	Terminal Pins

Part	Detent	Output Type	Mounting Type	Encoder Type	Pulses per Revolution	Built in Switch	Actuator Type	Termination Style
Broadcom Limited AEDT-9340-W00		Quadrature with Index (Incremental)	Chassis Mount	Optical	2500		Codewheel Not Included	Terminal Pins
Broadcom Limited AEDT-9340-U00		Quadrature with Index (Incremental)	Chassis Mount	Optical	2048		Codewheel Not Included	Terminal Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	240	$ 33.57

General part information

Rotary Encoder Optical 2500 Quadrature with Index (Incremental)
