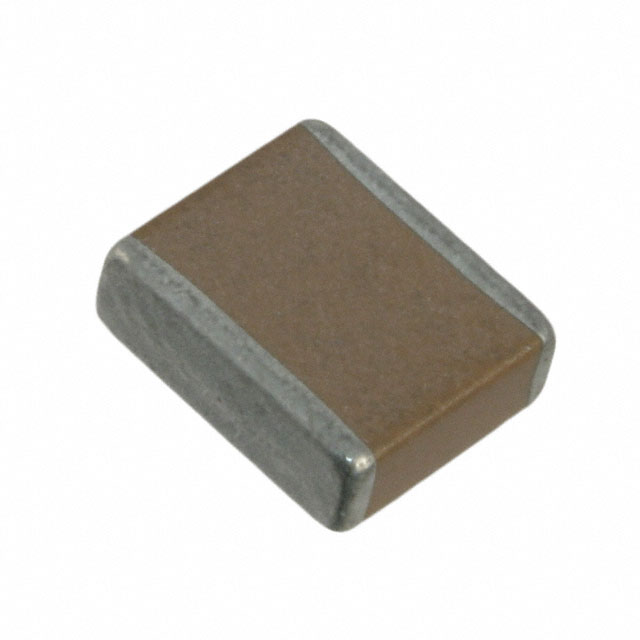

VPEH202W103K1GF001E

Active

JOHANSON DIELECTRICS

CAP CER 10000PF 2KV X7R 2225

Search across all available documentation for this part.

Active

JOHANSON DIELECTRICS

CAP CER 10000PF 2KV X7R 2225

Technical Specifications

Parameters and characteristics for this part

Specification	VPEH202W103K1GF001E

Applications	SMPS Filtering, Boardflex Sensitive
Capacitance	10000 pF
Features	High Voltage, Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2225
Package / Case	5763 Metric
Size / Dimension [x]	0.225 "
Size / Dimension [x]	5.72 mm
Size / Dimension [y]	6.48 mm
Size / Dimension [y]	0.255 "
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.16 in
Thickness (Max) [Max]	4.06 mm
Tolerance	10 %
Voltage - Rated	2 kV
Voltage - Rated	2000 V

Part	Features	Tolerance	Mounting Type	Package / Case	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Rated	Voltage - Rated	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient
JOHANSON DIELECTRICS VPEH202W103K1GF001E	High Voltage Soft Termination	10 %	MLCC Surface Mount	2225	5763 Metric	0.16 in	4.06 mm	0.225 "	6.48 mm	0.255 "	5.72 mm	Boardflex Sensitive SMPS Filtering	2 kV	2000 V	10000 pF	-55 °C	125 °C	X7R
JOHANSON DIELECTRICS VPEH202W103K1GV001E	High Voltage	10 %	MLCC Surface Mount	2225	5763 Metric	0.16 in	4.06 mm	0.225 "	6.48 mm	0.255 "	5.72 mm	SMPS Filtering	2 kV	2000 V	10000 pF	-55 °C	125 °C	X7R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.11

General part information

10000 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 2225 (5763 Metric)
