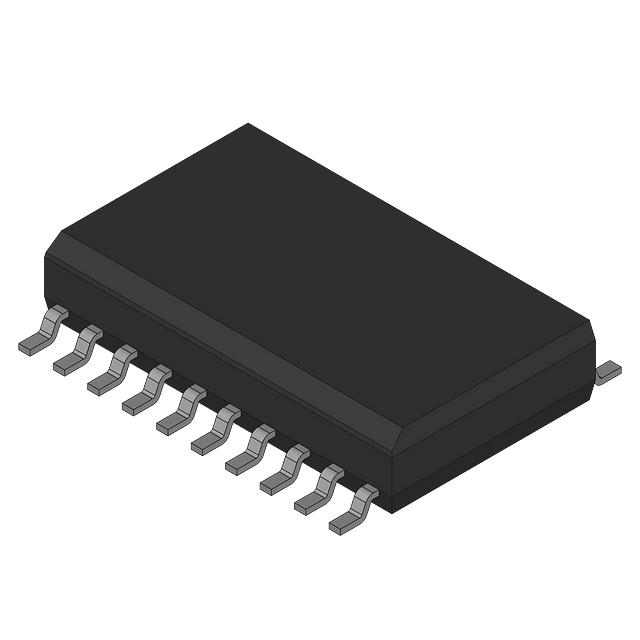

ATTINY87-A15SZ

Active

Atmel

IC MCU 8BIT 8KB FLASH 20SOIC

Search across all available documentation for this part.

Active

Atmel

IC MCU 8BIT 8KB FLASH 20SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	ATTINY87-A15SZ

Core Processor	AVR
Core Size	8-Bit
Data Converters	A/D
Data Converters	10 b, 11
EEPROM Size	512 x 8
Grade	Automotive
Mounting Type	Surface Mount
Number of I/O	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	20-SOIC
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Peripherals	PWM, WDT, Brown-out Detect/Reset, POR, Temp Sensor
Program Memory Size	8 KB
Program Memory Type	FLASH
Qualification	AEC-Q100
RAM Size	512
Speed	16 MHz
Supplier Device Package	20-SOIC
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	RAM Size	EEPROM Size	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	Package / Case	Package / Case [y]	Package / Case [y]	Grade	Supplier Device Package	Program Memory Type	Peripherals	Oscillator Type	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Speed	Number of I/O	Qualification	Data Converters	Data Converters	Core Size	Mounting Type
Atmel ATTINY87-A15SZ	512	512 x 8	-40 °C	125 °C	AVR	20-SOIC	0.295 in	7.5 mm	Automotive	20-SOIC	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	Internal	8 KB	2.7 V	5.5 V	16 MHz	16	AEC-Q100	A/D	10 b 11	8-Bit	Surface Mount
Atmel ATTINY87-MU	512	512 x 8	-40 °C	85 °C	AVR	32-VFQFN Exposed Pad				32-VQFN (5x5)	FLASH	Brown-out Detect/Reset POR PWM Temp Sensor WDT	Internal	8 KB	1.8 V	5.5 V	16 MHz	16		A/D	10 b 11	8-Bit	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	126	$ 2.48

General part information

AVR AVR® ATtiny Microcontroller IC 8-Bit 16MHz 8KB (4K x 16) FLASH 20-SOIC
