19301320738ML

Active

HARTING Technology Group

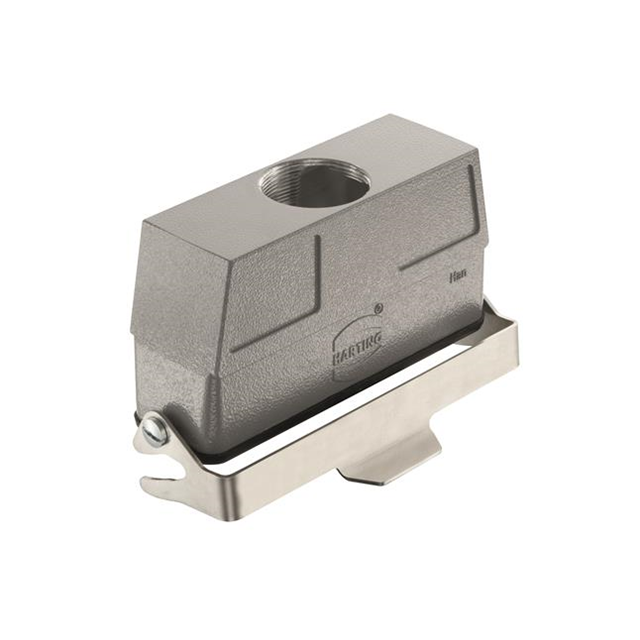

L32 HOOD CABLE TO CABLE, SINGLE

Search across all available documentation for this part.

Active

HARTING Technology Group

L32 HOOD CABLE TO CABLE, SINGLE

Technical Specifications

Parameters and characteristics for this part

Specification	19301320738ML

Connector Type	Hood
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	L32B
Size / Dimension	147.8 mm, 77.9 mm, 43 mm
Size / Dimension [x]	5.819 in
Size / Dimension [y]	1.693 in
Size / Dimension [z]	3.067 in
Style	Top Entry

Part	Connector Type	Housing Material	Lock Location	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Features	Housing Color	Style	Ingress Protection	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size
HARTING Technology Group 19301320738ML	Hood	Aluminum Die Cast	Locking Clip (1) on Hood	Powder Coated	125 °C	-40 °C	Cable to Cable	Gray	Top Entry	IP65 - Dust Tight Water Resistant	43 mm 77.9 mm 147.8 mm	5.819 in	3.067 in	1.693 in	L32B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M40 L32B IP65 - Dust Tight, Water Resistant
