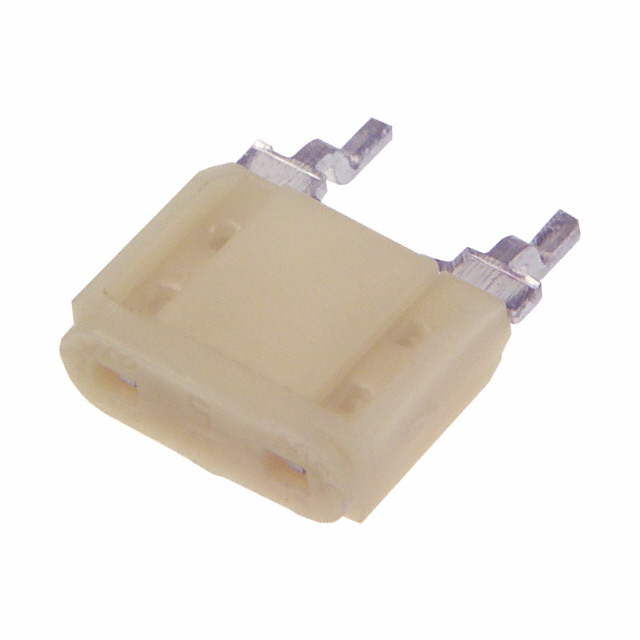

0446010.ZR

Obsolete

Littelfuse/Commercial Vehicle Products

350V EBF FA SM PB FREE 10A RED COLOR

Search across all available documentation for this part.

Obsolete

Littelfuse/Commercial Vehicle Products

350V EBF FA SM PB FREE 10A RED COLOR

Technical Specifications

Parameters and characteristics for this part

Specification	0446010.ZR

Approval Agency	CSA, UL
Breaking Capacity @ Rated Voltage	100 A, 50 A
Current Rating (Amps)	10 A
DC Cold Resistance	0.0073 Ohms
Fuse Type	Board Mount
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD, Gull Wing
Response Time	Fast Blow
Size / Dimension [x]	10.92 mm
Size / Dimension [x]	0.43 "
Size / Dimension [y]	8.76 mm
Size / Dimension [y]	0.345 in
Size / Dimension [z]	3.81 mm
Size / Dimension [z]	0.15 "
Voltage Rating - AC	350 V
Voltage Rating - DC	125 VDC

350V EBF FA SM PB FREE 10A RED COLOR

Part	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Response Time	Package / Case	Fuse Type	Voltage Rating - DC	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	DC Cold Resistance	Breaking Capacity @ Rated Voltage
Littelfuse/Commercial Vehicle Products 0446010.ZR	10 A	10.92 mm	3.81 mm	8.76 mm	0.345 in	0.15 "	0.43 "	Surface Mount	Fast Blow	2-SMD Gull Wing	Board Mount	125 VDC	CSA UL	125 °C	-40 °C	350 V	0.0073 Ohms	50 A 100 A
Littelfuse/Commercial Vehicle Products 0446010.ZRP	10 A	10.92 mm	3.81 mm	8.76 mm	0.345 in	0.15 "	0.43 "	Surface Mount	Fast Blow	2-SMD Gull Wing	Board Mount	125 VDC	CSA UL	125 °C	-40 °C	350 V	0.0073 Ohms	50 A 100 A
