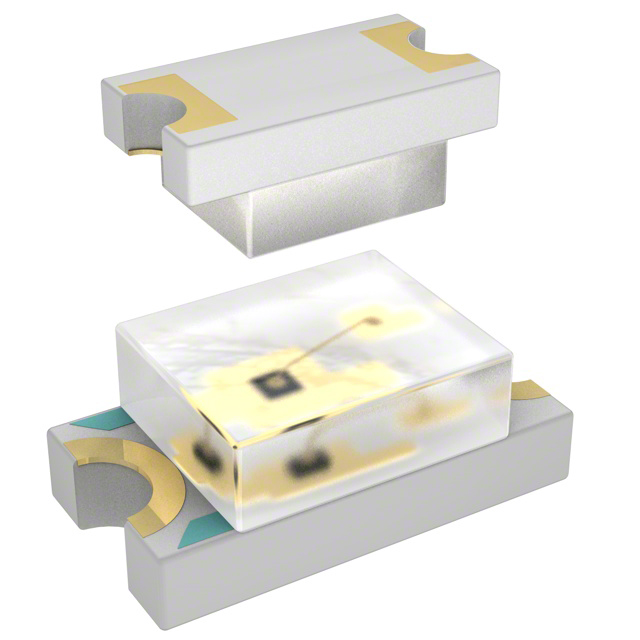

QTLP650CRTR

Active

Everlight Electronics Co Ltd

VISIBLE LED, WATER CLEAR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QTLP650CRTR

Active

Everlight Electronics Co Ltd

VISIBLE LED, WATER CLEAR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTLP650CRTR

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.3 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1.6 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	70 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	1206
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	624 nm
Wavelength - Peak	630 nm

QTLP650 Series

Part	Mounting Type	Wavelength - Dominant	Current - Test	Package / Case	Millicandela Rating	Height (Max) [Max] [z]	Lens Style	Configuration	Viewing Angle	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Color	Lens Size [y]	Lens Size [x]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Supplier Device Package	Lens Color	Package / Case	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]
Everlight Electronics Co Ltd QTLP650D3TR	Surface Mount	590 nm	20 mA	1206 (3216 Metric)	8 mcd	1.3 mm	Rectangle with Flat Top	Standard	140 °	Diffused	1.6 mm	3.2 mm	Yellow	1.6 mm	2 mm	2 V	585 nm	1206
Everlight Electronics Co Ltd QTLP650CAGTR	Surface Mount	573 nm	20 mA	1206 (3216 Metric)	30 mcd	1.3 mm	Rectangle with Flat Top	Standard	140 °	Clear	1.6 mm	3.2 mm	Yellow-Green	1.6 mm	2 mm	2 V	575 nm	1206	Colorless
Everlight Electronics Co Ltd QTLP650CRTR	Surface Mount	624 nm	20 mA	1206 (3216 Metric)	70 mcd	1.3 mm	Rectangle with Flat Top	Standard	140 °	Clear	1.6 mm	3.2 mm	Red	1.6 mm	2 mm	2 V	630 nm	1206	Colorless
Everlight Electronics Co Ltd QTLP650C3TR	Surface Mount	590 nm	20 mA	1206 (3216 Metric)	10 mcd	1.3 mm	Rectangle with Flat Top	Standard	140 °	Clear	1.6 mm	3.2 mm	Yellow	1.6 mm	2 mm	2 V	585 nm	1206	Colorless
Everlight Electronics Co Ltd QTLP650CETR	Surface Mount	615 nm	20 mA	1206 (3216 Metric)	70 mcd	1.3 mm	Rectangle with Flat Top	Standard	140 °	Clear	1.6 mm	3.2 mm		1.6 mm	2 mm	2 V	620 nm	1206	Colorless
Everlight Electronics Co Ltd QTLP650C4TR	Surface Mount	570 nm	20 mA	1206 (3216 Metric)	10 mcd	1.3 mm	Rectangle with Flat Top	Standard	140 °	Clear	1.6 mm	3.2 mm	Green	1.6 mm	2 mm	2.1 V	565 nm	1206	Colorless
Everlight Electronics Co Ltd QTLP650C74TR	Surface Mount		20 mA 20 mA	1210	6.5 mcd 15 mcd	1.1 mm	Rectangle with Flat Top	Independent	140 °	Clear			Green Red	2.7 mm	2 mm		565 nm 660 nm	1210	Colorless	3225 Metric	1.9 V	2 V	645 nm	570 nm
Everlight Electronics Co Ltd QTLP650CRAGTR	Surface Mount		20 mA 20 mA	1210	15 mcd 35 mcd	1.1 mm	Rectangle with Flat Top	Independent	140 °	Clear			Green Red	2.7 mm	2 mm		575 nm 630 nm	1210	Colorless	3225 Metric	2 V	2 V			573 nm 624 nm
Everlight Electronics Co Ltd QTLP650C34TR	Surface Mount	570 nm 590 nm	20 mA 20 mA	1210	6.5 mcd 6.5 mcd	1.1 mm	Rectangle with Flat Top	Independent	140 °	Clear			Green Yellow	2.7 mm	2 mm	2 V 2 V	565 nm 585 nm	1210	Colorless	3225 Metric
Everlight Electronics Co Ltd QTLP650D7TR	Surface Mount	645 nm	20 mA	1206 (3216 Metric)	15 mcd	1.3 mm	Rectangle with Flat Top	Standard	140 °	Diffused	1.6 mm	3.2 mm	Red	1.6 mm	2 mm	1.9 V	660 nm	1206

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.51
		10	$ 0.30
		100	$ 0.19
		500	$ 0.15
		1000	$ 0.14
	Digi-Reel®	1	$ 0.51
		10	$ 0.30
		100	$ 0.19
		500	$ 0.15
		1000	$ 0.14
	Tape & Reel (TR)	2000	$ 0.12
		4000	$ 0.12
		6000	$ 0.11
		10000	$ 0.11
		10000	$ 0.08
		14000	$ 0.10
		20000	$ 0.10
		30000	$ 0.07
		50000	$ 0.06
		50000	$ 0.10
		100000	$ 0.06
		100000	$ 0.09

Description

General part information

QTLP650 Series

Red 624nm LED Indication - Discrete 2V 1206 (3216 Metric)
