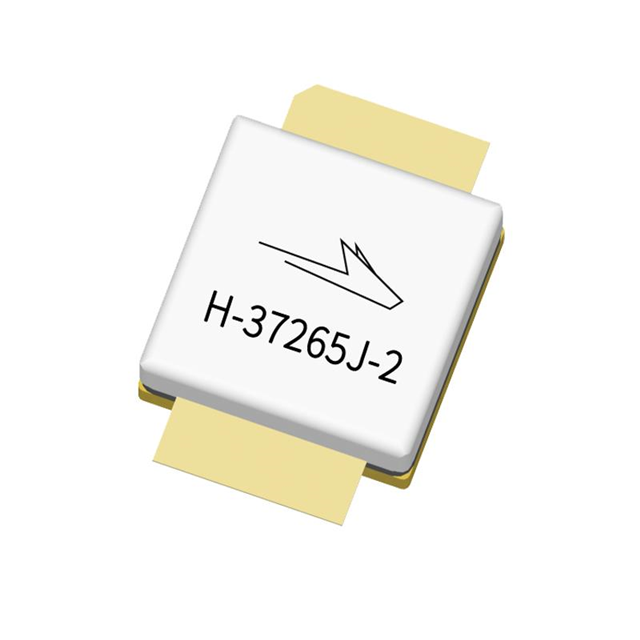

GTVA220701FA-V1-R0
ActiveMACOM Technology Solutions
RF MOSFET HEMT 48V H-37265J-2
Deep-Dive with AI
Search across all available documentation for this part.
GTVA220701FA-V1-R0
ActiveMACOM Technology Solutions
RF MOSFET HEMT 48V H-37265J-2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GTVA220701FA-V1-R0 |
|---|---|
| Current - Test | 200 mA |
| Frequency [Max] | 2.17 GHz |
| Frequency [Min] | 1.805 GHz |
| Gain | 22 dBi |
| Mounting Type | Surface Mount |
| Package / Case | H-37265J-2 |
| Power - Output | 70 W |
| Supplier Device Package | H-37265J-2 |
| Technology | HEMT |
| Voltage - Rated | 125 V |
| Voltage - Test | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 50 | $ 90.36 | |
| 100 | $ 84.04 | |||
Description
General part information
GTVA220701 Series
RF Mosfet 48 V 200 mA 1.805GHz ~ 2.17GHz 22dB 70W H-37265J-2
Documents
Technical documentation and resources
No documents available
