IEC-A-2
ActiveAdam Tech

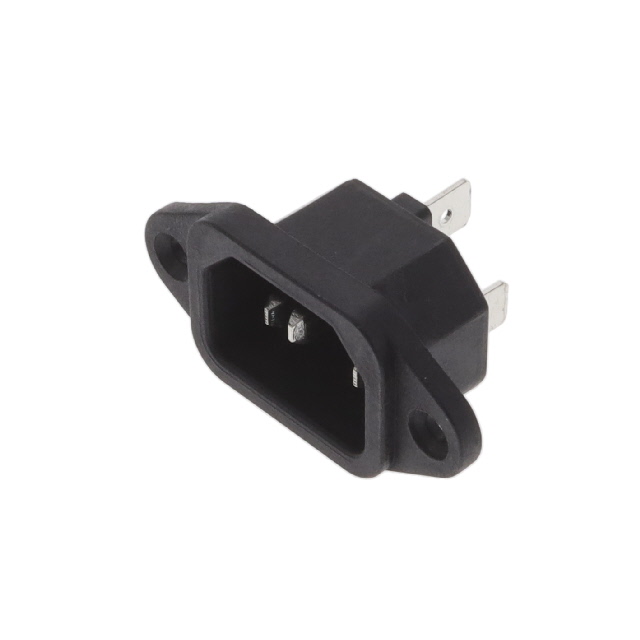

PWR ENT RCPT IEC320-C14 PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IEC-A-2 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | ENEC, CCC, cURus |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 15 A |
| Features | Front or Rear Side Mount |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions | Variable Size |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.09 | |
| 10 | $ 0.93 | |||
| 25 | $ 0.87 | |||
| 40 | $ 0.95 | |||
| 50 | $ 0.83 | |||
| 80 | $ 0.88 | |||
| 100 | $ 0.79 | |||
| 230 | $ 0.78 | |||
| 300 | $ 0.73 | |||
| 440 | $ 0.73 | |||
| 500 | $ 0.70 | |||
| 945 | $ 0.67 | |||
| 1000 | $ 0.67 | |||
| 2400 | $ 0.61 | |||
| 2500 | $ 0.63 | |||
Description
General part information
IEC-A Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
