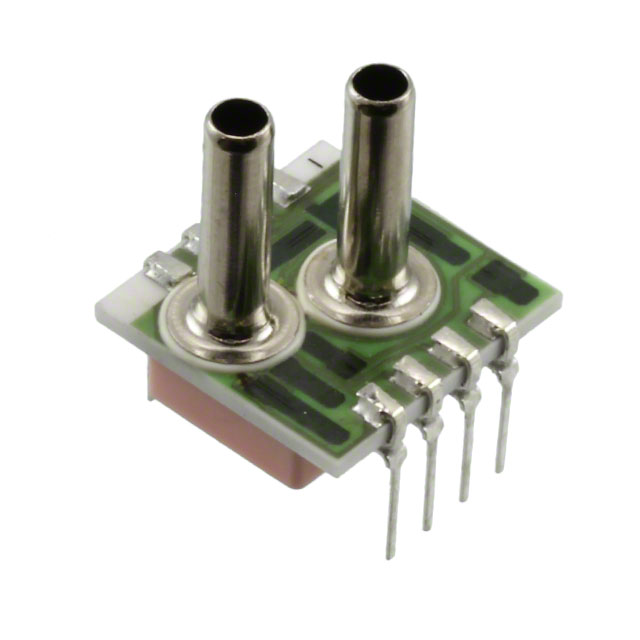

1210A-030A-3L

Obsolete

TE Connectivity Measurement Specialties

SENSOR 30PSIA 0.13" 0.1V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1210A-030A-3L

Obsolete

TE Connectivity Measurement Specialties

SENSOR 30PSIA 0.13" 0.1V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1210A-030A-3L

Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure [Max]	90 PSI
Maximum Pressure [Max]	620.53 kPa
Mounting Type	Through Hole
Operating Pressure	206.84 kPa
Operating Pressure	30 PSI
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	100 mV
Output [Min]	0 mV
Output Type	Wheatstone Bridge
Package / Case	8-DIP Module
Port Size	0.13 "
Port Size	Male
Port Size	3.23 mm
Port Style	Barbless
Termination Style	PC Pin

1210A Series

Part	Pressure Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Port Size	Operating Pressure [custom]	Operating Pressure [custom]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Termination Style	Applications	Mounting Type	Output [Max]	Port Style	Accuracy	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure	Port Size [x]	Port Size [x]	Operating Pressure [x]	Operating Pressure [x]
TE Connectivity Measurement Specialties 1210A-015G-3L	Vented Gauge	Wheatstone Bridge	125 °C	-40 °C	0.13 "	Male	3.23 mm	15 PSI	103.42 kPa	8-DIP Module	310.26 kPa	45 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless
TE Connectivity Measurement Specialties 1210A-005G-3L	Vented Gauge	Wheatstone Bridge	125 °C	-40 °C	0.13 "	Male	3.23 mm			8-DIP Module			Temperature Compensated	PCB		Through Hole	100 mV	Barbless	0.1 %	20 PSI	137.9 kPa	34.47 kPa	5 PSI
TE Connectivity Measurement Specialties 1210A-10WD-3S	Differential	Wheatstone Bridge	85 °C	-25 °C						8-DIP Module			Temperature Compensated	PC Pin	Board Mount	Through Hole	40 mV	Barbless		5 PSI	34.47 kPa	2.49 kPa	0.36 PSI	0.13 "	3.18 mm
TE Connectivity Measurement Specialties 1210A-100G-3S	Vented Gauge	Wheatstone Bridge	125 °C	-40 °C						8-DIP Module	1378.95 kPa	200 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless				689.48 kPa	100 PSI	0.13 "	3.18 mm
TE Connectivity Measurement Specialties 1210A-030A-3L		Wheatstone Bridge	125 °C	-40 °C	0.13 "	Male	3.23 mm			8-DIP Module	620.53 kPa	90 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless				206.84 kPa	30 PSI
TE Connectivity Measurement Specialties 1210A-030D-3S	Differential	Wheatstone Bridge	125 °C	-40 °C		Dual Male Tube				8-DIP Module	620.53 kPa	90 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless				206.84 kPa	30 PSI	0.13 "	3.18 mm
TE Connectivity Measurement Specialties 1210A-100D-3S	Differential	Wheatstone Bridge	125 °C	-40 °C		Dual Male Tube				8-DIP Module	1378.95 kPa	200 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless				689.48 kPa	100 PSI	0.13 "	3.18 mm
TE Connectivity Measurement Specialties 1210A-002D-3S	Differential	Wheatstone Bridge	125 °C	-40 °C		Dual Male Tube				8-DIP Module	41.37 kPa	6 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless						0.13 "	3.18 mm	13.79 kPa	2 PSI
TE Connectivity Measurement Specialties 1210A-015D-3S	Differential	Wheatstone Bridge	125 °C	-40 °C		Dual Male Tube		15 PSI	103.42 kPa	8-DIP Module	310.26 kPa	45 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless						0.13 "	3.18 mm
TE Connectivity Measurement Specialties 1210A-030D-3L	Differential	Wheatstone Bridge	125 °C	-40 °C	0.13 "	Dual Male Tube	3.23 mm			8-DIP Module	620.53 kPa	90 PSI	Temperature Compensated	PC Pin	Board Mount	Through Hole	100 mV	Barbless				206.84 kPa	30 PSI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1210A Series

Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.13" (3.23mm) Tube 0 mV ~ 100 mV 8-DIP Module
