29222C

Active

Murata Power Solutions Inc.

FIXED IND 2.2UH 5A 20 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Magnetics Selection Guide Datasheet

29222C

Active

Murata Power Solutions Inc.

FIXED IND 2.2UH 5A 20 MOHM SMD

Deep-Dive with AI

DocumentsPower Magnetics Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	29222C

Current Rating (Amps)	5 A
DC Resistance (DCR)	20 mOhm
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Inductance	2.2 µH
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Size / Dimension [x]	0.283 in
Size / Dimension [x]	7.2 mm
Size / Dimension [y]	7.2 mm
Size / Dimension [y]	0.283 "
Type	Wirewound

29 Series

Part	Mounting Type	DC Resistance (DCR) [Max]	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Shielding	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	DC Resistance (DCR)
Murata Power Solutions Inc. 29682C	Surface Mount	40 mOhm	6.8 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	2.1 A	85 °C	-40 °C
Murata Power Solutions Inc. 29102C	Surface Mount		1 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	6 A	85 °C	-40 °C	Nonstandard	16 mOhm
Murata Power Solutions Inc. 29105C	Surface Mount	4.1 Ohm	1 mH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	0.18 A	85 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 29222C	Surface Mount		2.2 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	5 A	85 °C	-40 °C		20 mOhm
Murata Power Solutions Inc. 29333C	Surface Mount		33 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	1 A	85 °C	-40 °C	Nonstandard	120 mOhm
Murata Power Solutions Inc. 29152C	Surface Mount		1.5 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	5.5 Amps	85 °C	-40 °C		18 mOhm
Murata Power Solutions Inc. 29224C	Surface Mount	760 mOhm	220 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	0.38 A	85 °C	-40 °C
Murata Power Solutions Inc. 29332C	Surface Mount	28 mOhm	3.3 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	4 A	85 °C	-40 °C	Nonstandard
Murata Power Solutions Inc. 29154C	Surface Mount	500 mOhm	150 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	470 mA	85 °C	-40 °C
Murata Power Solutions Inc. 29683C	Surface Mount	250 mOhm	68 µH	0.157 in	4 mm	10 kHz	7.2 mm	0.283 "	0.283 in	7.2 mm	Wirewound	Shielded	650 mA	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.48
Newark	Each	1000	$ 0.55

Description

General part information

29 Series

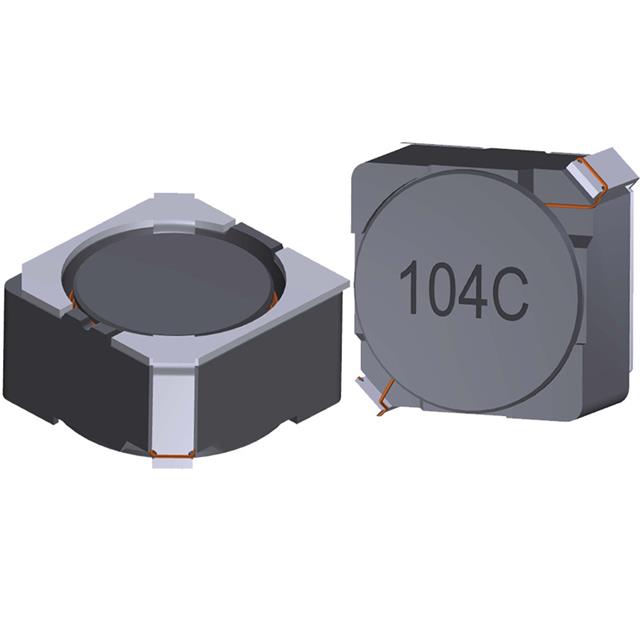

2.2 µH Shielded Wirewound Inductor 5 A 20mOhm Max Nonstandard, Corner Terminals
