4900-9048RD63

Obsolete

TE Connectivity Passive Product

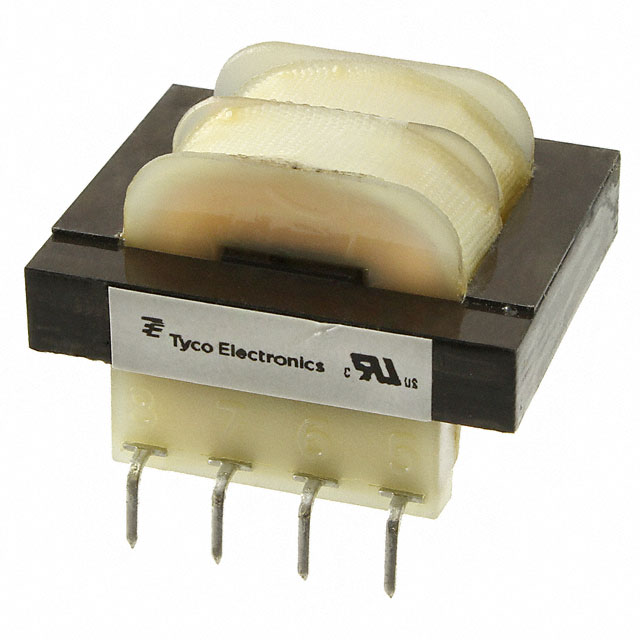

PWR XFMR LAMINATED 12VA TH

Deep-Dive with AI

Search across all available documentation for this part.

4900-9048RD63

Obsolete

TE Connectivity Passive Product

PWR XFMR LAMINATED 12VA TH

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4900-9048RD63

Center Tap	False
Current - Output (Max) [Max]	500 mA, 250 mA
Height - Seated (Max) [Max]	35.8 mm
Mounting Type	Through Hole
Power - Max [Max]	12 VA
Primary Winding(s)	Dual
Secondary Winding(s)	Dual
Size / Dimension [x]	48 mm
Size / Dimension [y]	40 mm
Termination Style	PC Pin
Type	Laminated Core
Voltage - Primary	115 V, 230 V
Voltage - Secondary (Full Load)	48 V, 24 V

4900 Series

Part	Termination Style	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Primary Winding(s)	Mounting Type	Secondary Winding(s)	Type	Power - Max [Max]	Voltage - Primary	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Voltage - Secondary (Full Load)	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]
TE Connectivity Passive Product 4900-9013RD63	PC Pin	6.3 V	12.6 V	Dual	Through Hole	Dual	Laminated Core	12 VA	115 V 230 V	72.97 mm	22.61 mm	35.81 mm
TE Connectivity Passive Product 4900-8012RE64	PC Pin			Single	Through Hole	Dual	Laminated Core	20 VA	115 V	47.6 mm	57 mm	35.8 mm	1.67 A	3.33 A	6 V 12 V
TE Connectivity Passive Product 4900-8024RE64	PC Pin			Single	Through Hole	Dual	Laminated Core	20 VA	115 V	47.6 mm	57 mm	35.8 mm			12 V 24 V	0.833 A 1.666 A
TE Connectivity Passive Product 4900-9048RD63	PC Pin			Dual	Through Hole	Dual	Laminated Core	12 VA	115 V 230 V	40 mm	48 mm	35.8 mm			24 V 48 V		250 mA 500 mA
TE Connectivity Passive Product 4900-8048RD63	PC Pin			Single	Through Hole	Dual	Laminated Core	12 VA	115 V	40 mm	48 mm	35.8 mm			24 V 48 V		250 mA 500 mA
TE Connectivity Passive Product 4900-8028RD63	PC Pin			Single	Through Hole	Dual	Laminated Core	12 VA	115 V	40 mm	48 mm	35.8 mm			14 V 28 V			856 mA	428 mA
TE Connectivity Passive Product 4900-8024RD63	PC Pin			Single	Through Hole	Dual	Laminated Core	12 VA	115 V	40 mm	48 mm	35.8 mm	500 mA	1 A	12 V 24 V
TE Connectivity Passive Product 4900-8024RA60	PC Pin			Single	Through Hole	Dual	Laminated Core	1.1 VA	115 V	30 mm	35.1 mm				12 V 24 V	46 mA 92 mA				23.6 mm
