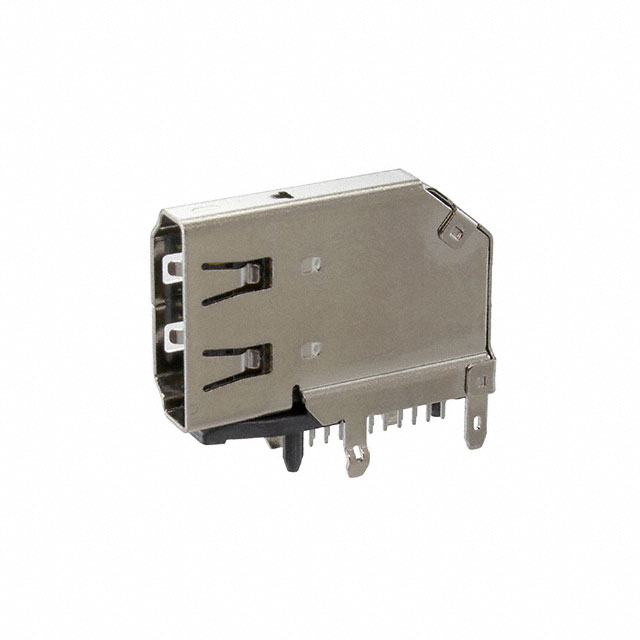

KDMIX-SL1-NS-WS-B15

Active

Kycon, Inc.

HDMI CONN, TYPE A, RCPT, 19POS, PCB

Search across all available documentation for this part.

Active

Kycon, Inc.

HDMI CONN, TYPE A, RCPT, 19POS, PCB

Technical Specifications

Parameters and characteristics for this part

Specification	KDMIX-SL1-NS-WS-B15

Connector Type	HDMI
Contact Finish	Gold
Current Rating (Amps)	0.5 A
Features	Board Guide
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Vertical, Flag
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	19
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Termination	Solder

Part	Mating Cycles	Shielding	Current Rating (Amps)	Number of Ports	Mounting Feature	Number of Contacts [custom]	Features	Shell/Shielding Material	Mounting Type	Contact Finish	Material Flammability Rating	Insulation Color	Gender	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type
Kycon, Inc. KDMIX-SL1-NS-WS-B15	10000	Shielded	0.5 A	1	Flag Vertical	19	Board Guide	Stainless Steel	Through Hole Right Angle	Gold	UL94 V-0	Black	Receptacle	Solder	-40 °C	105 ░C	HDMI
