19307101441

Active

HARTING Technology Group

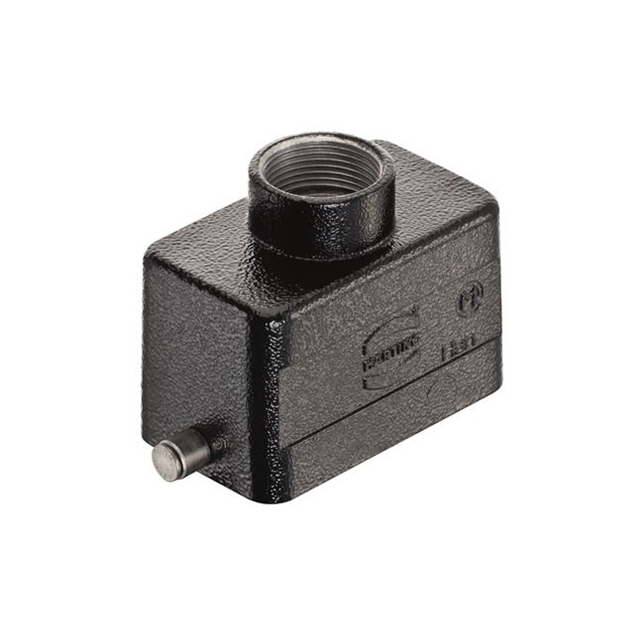

10B HOOD TOP ENTRY, SINGLE LEVER, LOW CONSTRUCTION, M25 - BLACK

Search across all available documentation for this part.

Active

HARTING Technology Group

10B HOOD TOP ENTRY, SINGLE LEVER, LOW CONSTRUCTION, M25 - BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19307101441

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.772 in
Size / Dimension [z]	45 mm
Style	Top Entry
Thread Size	M25

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Thread Size	Ingress Protection	Housing Material	Size	Lock Location	Style	Housing Color	Connector Type
HARTING Technology Group 19307101441	43 mm	72.6 mm	2.858 "	1.772 in	1.693 in	45 mm	125 °C	-40 °C	Powder Coated	M25	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	10B	Locking Clip (1) on Base Bottom	Top Entry	Black	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 10B IP65 - Dust Tight, Water Resistant
