Q-2404X000H.25M
ActiveAmphenol Custom Cable

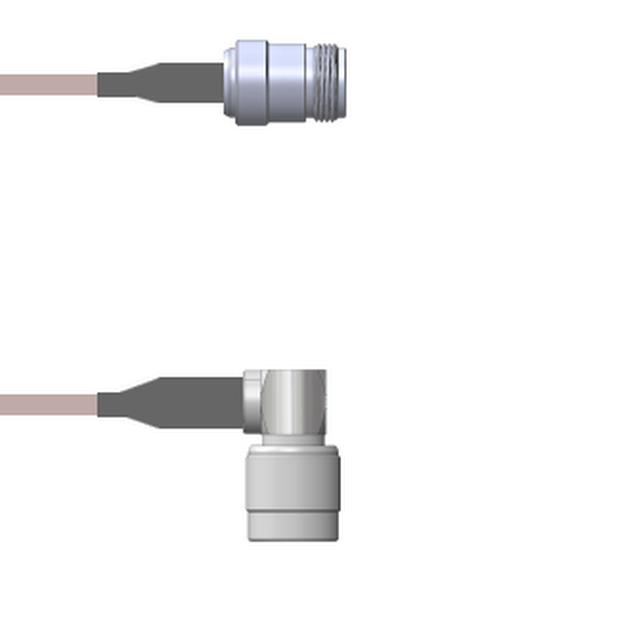

CBL ASSY NTYPE-TNC JCK-PL 9.843"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2404X000H.25M
ActiveAmphenol Custom Cable
CBL ASSY NTYPE-TNC JCK-PL 9.843"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2404X000H.25M |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-142 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length [x] | 9.843 " |
| Length [x] | 250 mm |
| Overall Impedance | 50 Ohms |
Q-2404X0 Series
| Part | 1st Connector Mounting Type | Cable Type | 2nd Connector Mounting Type | Length | Length | 2nd Connector | 2nd Contact Gender | 1st Connector | Color | Features | Frequency - Max [Max] | 1st Contact Gender | Overall Impedance | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 9 " | 228.6 mm | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | |||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 48 in | 1200 mm | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | 4 ft | ||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 118.1 in | 3 m | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | 9.8 ' | ||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 24 " | 609.6 mm | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | |||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 29.53 " | 750 mm | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | |||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | 9.843 " | 250 mm | |||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 108 in | 2.7 m | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | 9 ft | ||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 5 ' | 1.5 m | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | 5 ft | ||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 84 in | 2.1 m | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms | 7 ft | ||
Amphenol Custom Cable | Free Hanging (In-Line) | RG-142 | Free Hanging (In-Line) | 19.69 " | 50 cm | TNC Plug Right Angle | Male | N-Type Jack | Copper | Shielded | 11 GHz | Female | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 64.89 | |
| 25 | $ 63.63 | |||
| 50 | $ 62.38 | |||
| 100 | $ 61.13 | |||
| 250 | $ 59.87 | |||
Description
General part information
Q-2404X0 Series
Cable Assembly Coaxial N-Type to TNC RG-142 9.843" (250.00mm)
Documents
Technical documentation and resources
No documents available
