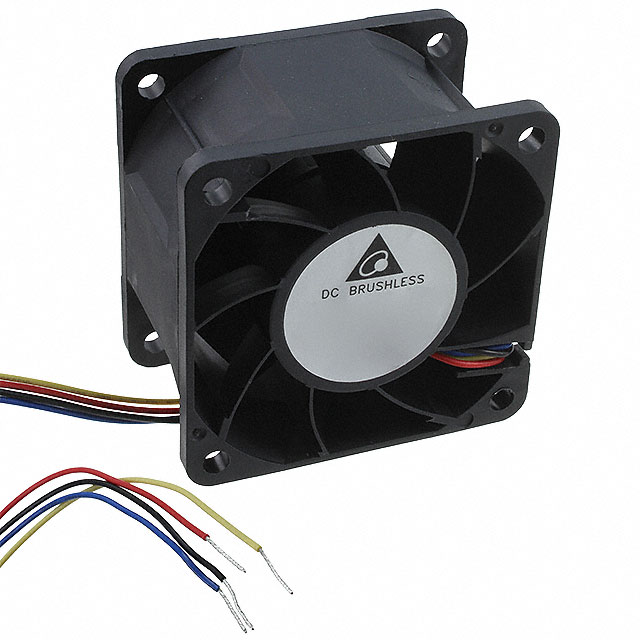

FFC0612DE-PP01

Obsolete

Delta Electronics

FAN AXIAL 60X38MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 60X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	FFC0612DE-PP01

Air Flow	1.53 mł/min
Air Flow	54.8 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	900 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10.8 W
RPM	9000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.234 lb
Weight	106.14 g
Width [y]	38 mm

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Power (Watts)	Noise	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Air Flow	Air Flow	Weight	Weight	RPM	Fan Type	Voltage - Rated	Termination	Material - Frame	Bearing Type	Width [y]
Delta Electronics FFC0612DE-PP01	Locked Rotor Protection PWM Control Speed Sensor (Tach)	60 mm	60 mm	70000 Hrs	Plastic	900 mA	10.8 W	60 dB(A)	-10 °C	-10 °C	60 °C	60 °C	13.2 VDC	7 V	CE CSA UL VDE	1.53 mł/min	54.8 CFM	0.234 lb	106.14 g	9000 RPM	Tubeaxial	12 VDC	4 Wire Leads	Plastic	Ball	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 54.8 CFM (1.53m³/min) 4 Wire Leads
