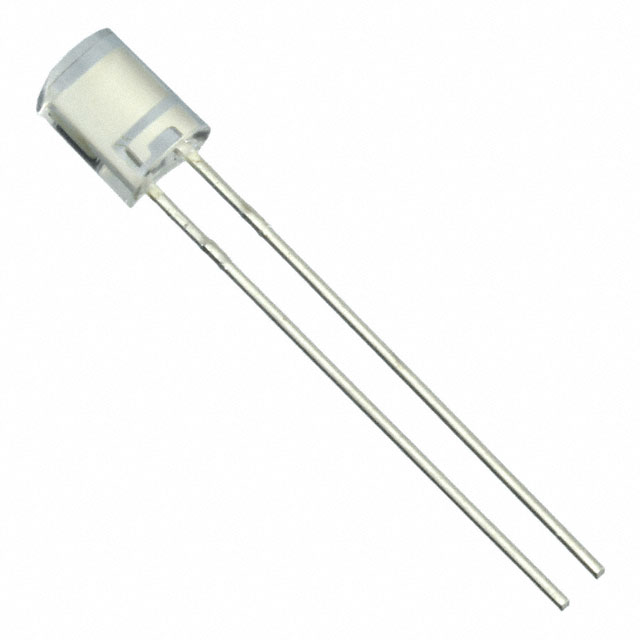

VTD206KH
ActiveExcelitas Technologies
SENSOR PHOTODIODE 925NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTD206KH
ActiveExcelitas Technologies
SENSOR PHOTODIODE 925NM RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTD206KH |
|---|---|
| Active Area | 7.41 mm² |
| Current - Dark (Typ) | 30 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Side View |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Viewing Angle | 120 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 50 V |
| Wavelength | 925 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.28 | |
| 100 | $ 1.20 | |||
Description
General part information
VTD206 Series
Photodiode 925nm 120° Radial, Side View
