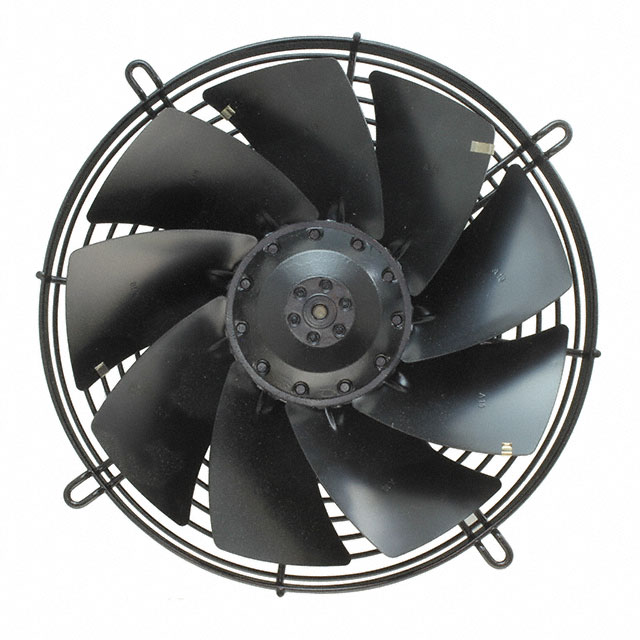

S2E250-AM08-15

Active

ebm-papst Inc.

AC AXIAL FAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN

Technical Specifications

Parameters and characteristics for this part

Specification	S2E250-AM08-15

Bearing Type	Ball
Current Rating (Amps)	1.45 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature	60 °C
Operating Temperature	60 °C
Power (Watts)	165 W
RPM	2700 RPM
Size / Dimension	Round
Size / Dimension [diameter]	300 mm
Termination	Terminal Block
Voltage - Rated	115 VAC
Width [y]	138.9 mm

Part	Current Rating (Amps)	Termination	Width [y]	Power (Watts)	Bearing Type	Size / Dimension	Size / Dimension [diameter]	Fan Type	Ingress Protection	Voltage - Rated	Operating Temperature	Operating Temperature	RPM	Features	Material - Blade	Width [x]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure
ebm-papst Inc. S2E250-AM08-15	1.45 A	Terminal Block	138.9 mm	165 W	Ball	Round	300 mm	Tubeaxial	IP44	115 VAC	60 °C	60 °C	2700 RPM	Capacitor Thermal Overload Protector (TOP)	Steel
ebm-papst Inc. S2E250-AL06-01	660 mA	7 Wire Leads with Splice Terminals		150 W	Ball	Round	300 mm	Tubeaxial	IP44	230 VAC			2600 RPM	Capacitor Thermal Overload Protector (TOP)	Steel	84 mm	CCC CE EAC	50 °C	-25 °C	-25 °C	50 °C	0.341 in H2O	85 Pa
ebm-papst Inc. S2E250-BM06-01	660 mA	4 Wire Leads with Splice Terminals	76.4 mm	150 W	Ball		290 mm	Tubeaxial	IP44	230 VAC			2600 RPM	Capacitor Thermal Overload Protector (TOP)	Steel		CCC CE EAC	50 °C	-25 °C	-25 °C	50 °C	0.341 in H2O	85 Pa
ebm-papst Inc. S2E250-AL06-70	0.73 A	4 Wire Leads with Splice Terminals	84.7 mm	175 W	Ball	Round	300 mm	Tubeaxial	IP44	230 VAC			2600 RPM	Capacitor Thermal Overload Protector (TOP)	Steel		CE CSA UL	35 °C	-25 °C	-25 °C	35 °C	0.341 in H2O	85 Pa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Round - 300mm Dia Ball Terminal Block
