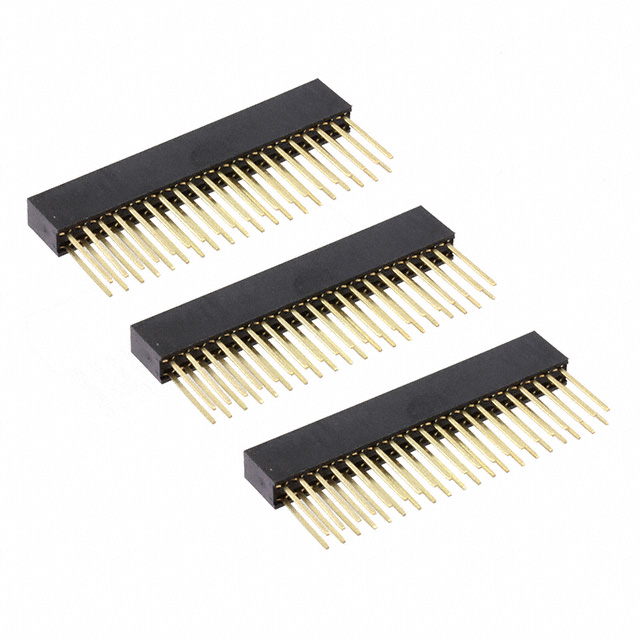

920-0200-01
ActiveSchmartboard, Inc.
CONN HDR 40POS PCB R/A 3PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
920-0200-01
ActiveSchmartboard, Inc.
CONN HDR 40POS PCB R/A 3PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 920-0200-01 |
|---|---|
| Connector Type | Header |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.00 | |
Description
General part information
920-0200 Series
40 Position Header Connector Through Hole, Right Angle
