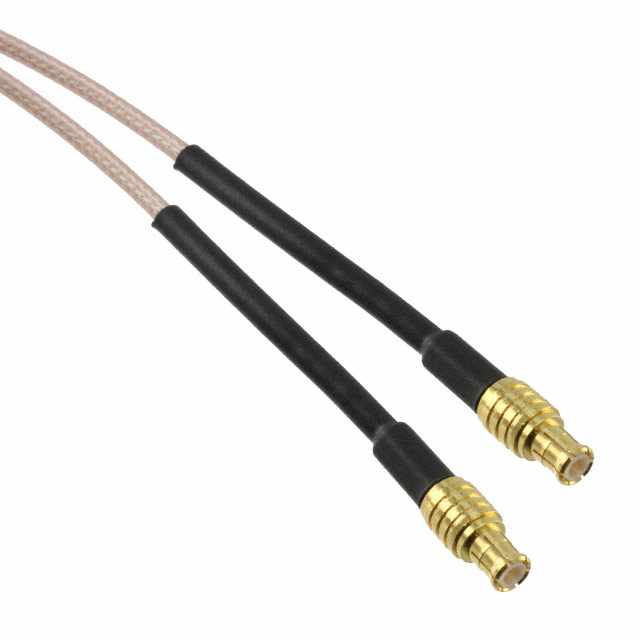

255101-08-M1.00

Active

Amphenol RF

COAX CBL MCX TO MCX 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

255101-08-M1.00

Active

Amphenol RF

COAX CBL MCX TO MCX 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	255101-08-M1.00

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Features	Shielded
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	MCX to MCX

255101 Series

Part	Length	Length	Length	Features	1st Contact Gender	2nd Connector	Cable Type	Color	Overall Impedance	1st Connector	1st Connector Mounting Type	2nd Connector Mounting Type	Style	2nd Contact Gender	Cable Impedance
Amphenol RF 255101-08-M1.00	1 m	3.3 ft	39.4 in	Shielded	Male	MCX Plug	RG-178	Copper	50 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	50 Ohms
Amphenol RF 255101-08-36.00	91.44 cm		36 in	Shielded	Male	MCX Plug	RG-178	Copper	50 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	50 Ohms
Amphenol RF 255101-05-48.00	1200 mm	4 ft	48 in	Shielded	Male	MCX Plug	RG-179	Copper	75 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	75 Ohms
Amphenol RF 255101-08-48.00	1200 mm	4 ft	48 in	Shielded	Male	MCX Plug	RG-178	Copper	50 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	50 Ohms
Amphenol RF 255101-08-12.00	304.8 mm		12 "	Shielded	Male	MCX Plug	RG-178	Copper	50 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	50 Ohms
Amphenol RF 255101-01-06.00	152.4 mm		6 in	Shielded	Male	MCX Plug	RG-316	Copper	50 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	50 Ohms
Amphenol RF 255101-05-36.00	91.44 cm		36 in	Shielded	Male	MCX Plug	RG-179	Copper	75 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	75 Ohms
Amphenol RF 255101-08-M0.75	750 mm		29.53 "	Shielded	Male	MCX Plug	RG-178	Copper	50 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	50 Ohms
Amphenol RF 255101-01-12.00	304.8 mm		12 "	Shielded	Male	MCX Plug	RG-316	Copper	50 Ohms	MCX Plug	Free Hanging (In-Line)	Free Hanging (In-Line)	MCX to MCX	Male	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 22.91

Description

General part information

255101 Series

Cable Assembly Coaxial MCX to MCX RG-178 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
