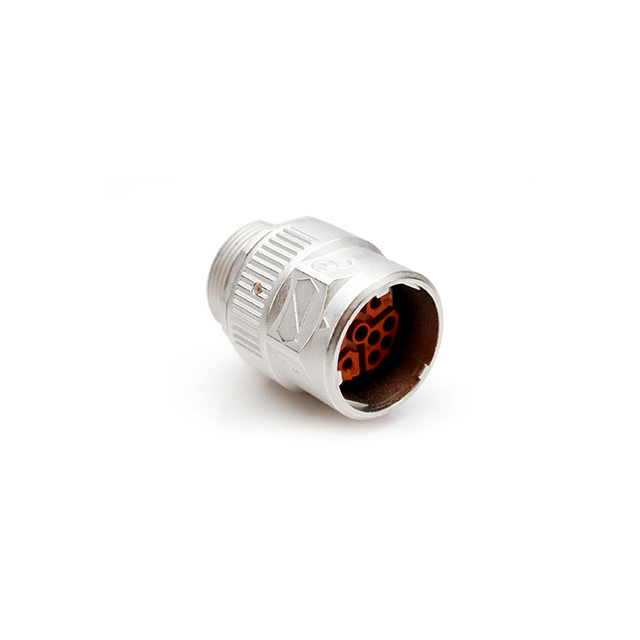

MB2CKN0900

Active

Amphenol Sine Systems Corp

9 POSITION STRAIGHT PLUG, CHECKM

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

9 POSITION STRAIGHT PLUG, CHECKM

Technical Specifications

Parameters and characteristics for this part

Specification	MB2CKN0900

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size [custom]	2 mm
Contact Size [custom]	1 mm
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [custom]	9
Number of Positions [custom]	4
Number of Positions [custom]	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Female Sockets

Part	Shell Size - Insert	Mounting Type	Type	Contact Size [custom]	Contact Size [custom]	Shell Material	Shell Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Features	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Material Flammability Rating	Contact Type	Note	Contact Shape	Orientation	Ingress Protection	Insert Material	Shielding
Amphenol Sine Systems Corp MB2CKN0900	M23-9	Free Hanging (In-Line)	For Female Sockets	2 mm	1 mm	Zinc Die Cast	Nickel	4	9	4	1	Coupling Nut	Plug Housing	-20 C	130 °C	Silver	UL94 V-0	Crimp	Contacts Not Included	Circular	Keyed	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 (4 + 4 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
