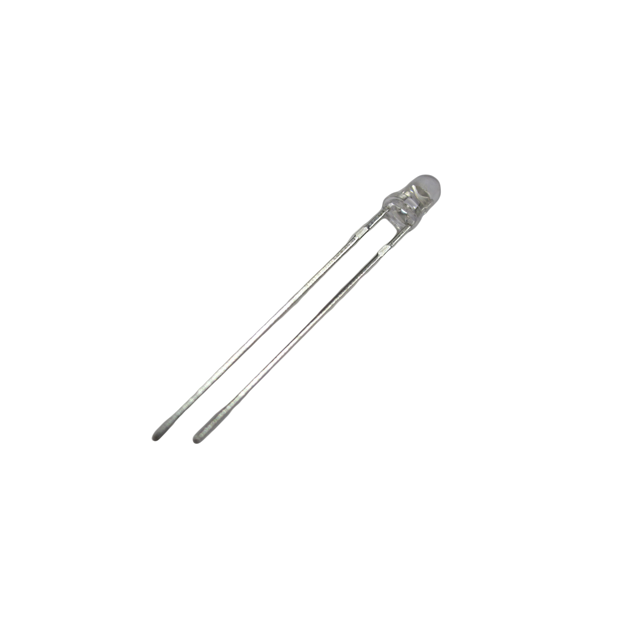

QBL7AG30C
ActiveQT Brightek (QTB)
LED YLW-GRN CLEAR T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QBL7AG30C
ActiveQT Brightek (QTB)
LED YLW-GRN CLEAR T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QBL7AG30C |
|---|---|
| Color | Yellow-Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 5.33 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 270 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 3.05 mm |
| Supplier Device Package | T-1 (3mm) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 573 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2000 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 25000 | $ 0.12 | |||
Description
General part information
QBL7AG30 Series
Yellow-Green 573nm LED Indication - Discrete 2V Radial
