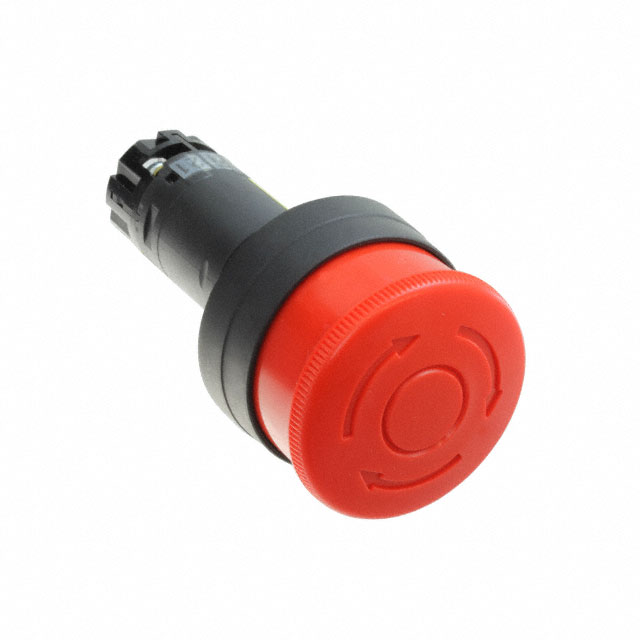

HW1E-TV4F11QD-R-24V

Obsolete

IDEC

SWITCH ESTOP PULL RESET 10A 110V

Search across all available documentation for this part.

Obsolete

IDEC

SWITCH ESTOP PULL RESET 10A 110V

Technical Specifications

Parameters and characteristics for this part

Specification	HW1E-TV4F11QD-R-24V

Circuit	DPST-NO/NC
Current Rating (Amps)	8 A, 10 A
Features	Illuminated (Red)
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Reset Operation	Pull
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Features	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Reset Operation	Termination Style	Ingress Protection
IDEC HW1E-TV4F11QD-R-24V	50 °C	-25 °C	24 VAC/DC	Illuminated (Red)	8 A 10 A	Off-On On-Off	22.3 mm	DPST-NO/NC	Panel Mount Front	24 V	110 V	Pull	Screw Terminal	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SWITCH ESTOP PULL RESET 10A 110V
