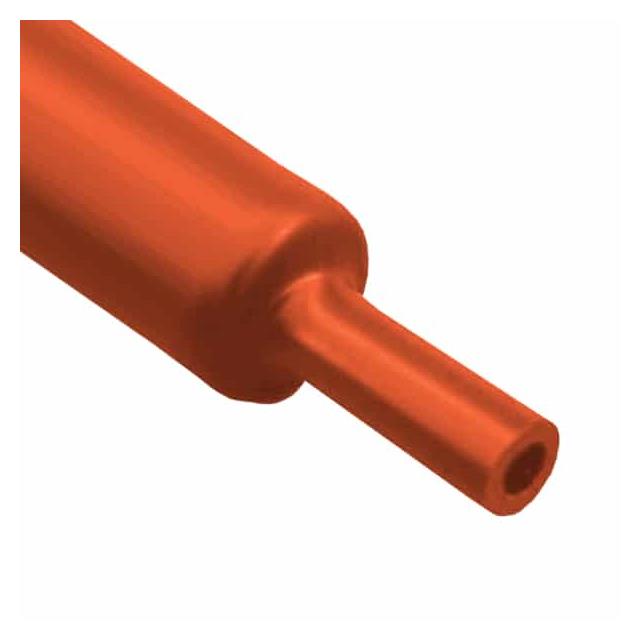

QRA3-13/4-QC48IN-20

Active

Qualtek

HEATSHRINK 13/4MM-48"

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 13/4MM-48"

Technical Specifications

Parameters and characteristics for this part

Specification	QRA3-13/4-QC48IN-20

Color	Black, Red
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.094 "
Recovered Wall Thickness	2.4 mm
Shelf Life	60 Months
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Insulation

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Shelf Life
Qualtek QRA3-13/4-QC48IN-20	3.99 mm	0.157 in	Black Red	0.094 "	2.4 mm	1.22 m	4 ft	Tubing Insulation	-50 °F -10 °C	40 °C	-55 °C	110 °C	1	3	Polyolefin (PO)	60 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Insulation 0.750" (19.05mm) 3 to 1 Black, Red 4.00' (1.22m)
