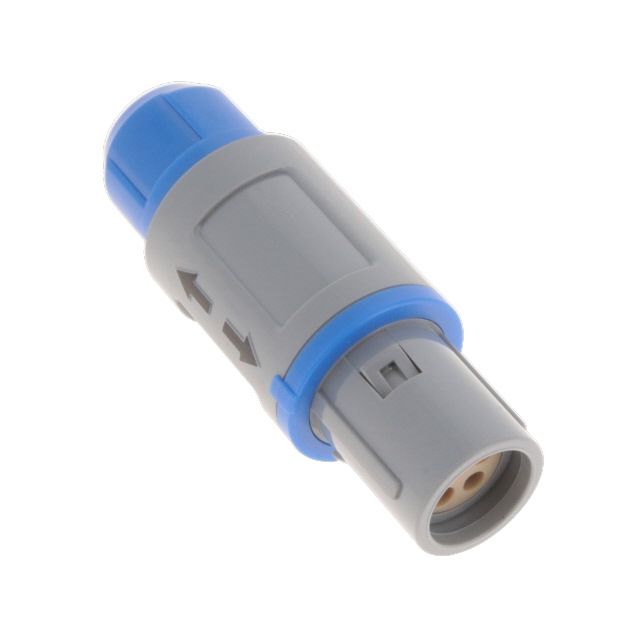

CAB.H05.GLA.C72A

Active

LEMO

PLUG 5 POS FREE HANGING

Search across all available documentation for this part.

Active

LEMO

PLUG 5 POS FREE HANGING

Technical Specifications

Parameters and characteristics for this part

Specification	CAB.H05.GLA.C72A

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Cable Opening [custom]	5.3 mm, 7.2 mm
Cable Opening [custom]	0.209 in, 0.283 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	8 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Shell Material	Polysulfone (PSU)
Shell Size - Insert	H-5
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Shell Material	Applications	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Color	Shell Size - Insert	Orientation	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Connector Type	Fastening Type	Current Rating (Amps)	Ingress Protection	Material Flammability Rating	Insert Material	Mounting Type	Features
LEMO CAB.H05.GLA.C72A	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	150 °C	-50 °C	Gray	H-5	B	250 VDC	5.3 mm 7.2 mm	0.209 in 0.283 in	Gold	Male Pins Plug	Detent Lock Push-Pull	8 A	IP50	UL94 V-0	Polyetheretherketone (PEEK)	Free Hanging (In-Line)	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
