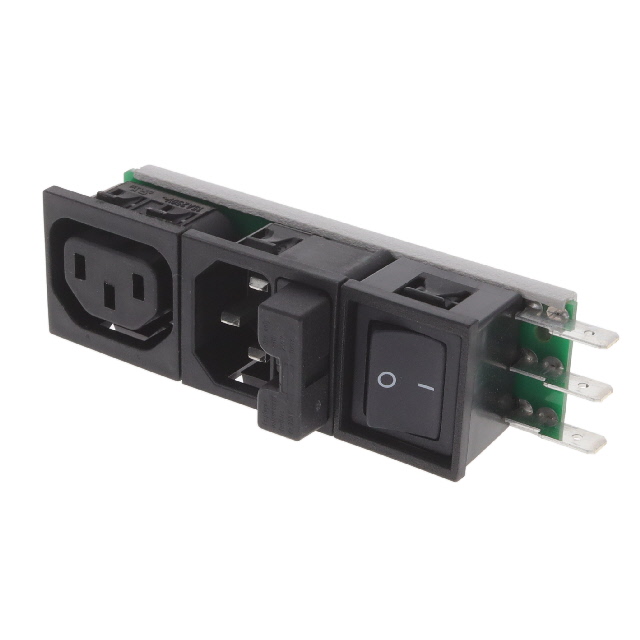

6432.0253.30
ActiveSCHURTER Inc.
PWR ENT IN/OUT IEC320-2-2F PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6432.0253.30 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, ENEC, CSA |
| Connector Style | IEC 320-2-2/F, IEC 320-C14 |
| Connector Type | Receptacle, Female Sockets, Receptacle, Male Blades |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Number of Positions | 3 |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 90.6 mm |
| Panel Thickness | 3 mm |
| Panel Thickness | 0.118 in |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.82 | |
| 50 | $ 45.84 | |||
| 100 | $ 41.39 | |||
Description
General part information
6432.0253 Series
Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-2-2/F; IEC 320-C14 Panel Mount, Snap-In
